NVIDIA Mellanox MCP7Y10-N003 Cable OSFP 800G to 2x400G QSFP112 NDR DAC 3m - Refurbished

Part no.MCP7Y10-N003

€550.00

In stockCondition: Refurbished

Request a quote

Checkout runs on the secure Wix checkout page.

Also available: New, €950.00, in stock

Where to buy the MCP7Y10-N003: T.E.S IT-SOLUTIONS sells the MCP7Y10-N003 at €550, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Recovered from end-of-life equipment, inspected and tested before it ships.

See the production flow
MCP7Y10-N003Tap the photo for full size

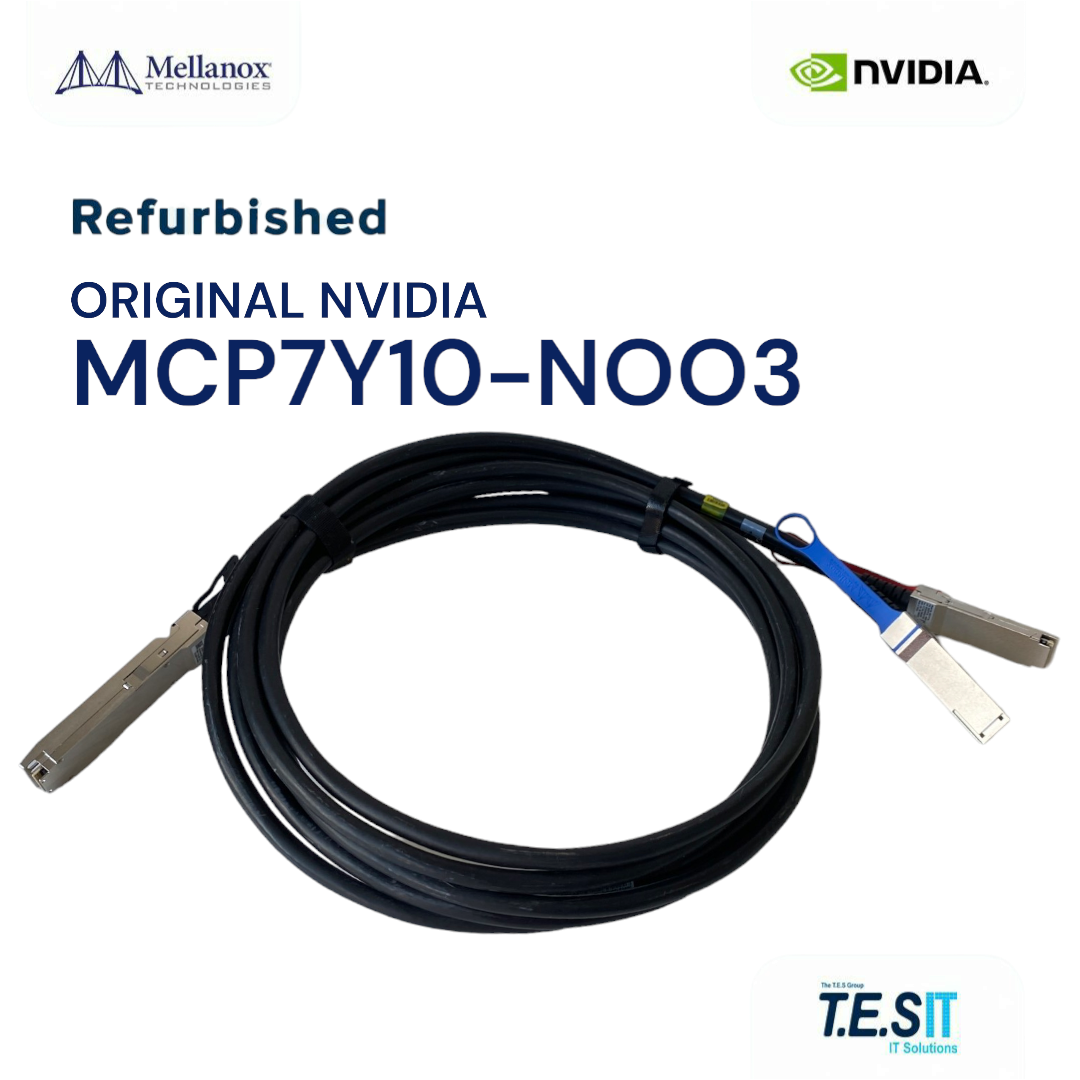

NVIDIA Mellanox MCP7Y10-N003 Cable OSFP 800G to 2x400G QSFP112 NDR DAC 3m, photo 1 of 4

Description

NVIDIA Mellanox MCP7Y10-N003 800G OSFP to 2x 400G QSFP112 NDR Passive Copper Hybrid Breakout DAC, 3 meters: This is a 3 meters passive copper Direct Attach Cable (DAC) that splits a single 800G OSFP InfiniBand NDR switch port into two independent 400G QSFP112 NDR400 downlinks. This is a fixed-length passive twinax assembly with no DSPs, retimers, or optics. This is a downlink fanout cable, not an aggregation or end-to-end interconnect. This is a refurbished unit.

Engineering Context

The MCP7Y10-N003 bridges OSFP-only 800G NDR switches with QSFP112-only 400G endpoints. OSFP 800G carries 8 lanes of 100G PAM4; each QSFP112 leg receives 4 lanes for 400Gb/s NDR400 operation. Passive copper introduces no DSP latency and consumes zero port power, making it preferred for AI synchronization workloads, HPC collective operations, and scale-out training where deterministic latency matters. Conductor is 28 AWG with an LSZH (Low Smoke Zero Halogen) jacket. At 3 meters, the cable operates near the upper practical reach of passive copper for 100G PAM4 per lane; routing must respect minimum bend radius and avoid sharp vertical compression.

Deployment & Use Cases

Quantum-2 NDR switch downlinks to ConnectX-7 400G adapters in AI training clusters and GPU pods. Phased 800G rollouts where switch fabric runs OSFP 800G but compute nodes use QSFP112 400G NICs. Row-level fanout where 1m DACs are insufficient and 3m bridges adjacent racks. HPC systems prioritizing deterministic latency for collective operations such as AllReduce and AllGather.

Technical Specifications

OEM: NVIDIA Mellanox
Part Number: MCP7Y10-N003
NVIDIA P/N: 980-9I80P-00N003
Cable Type: Passive Copper Hybrid Breakout DAC (Twinax)
Topology: OSFP (800G NDR) to 2x QSFP112 (400G NDR400)
Protocol: InfiniBand NDR / NDR400
Signaling: PAM4, 100Gb/s per lane
Length: 3 meters
Conductor: 28 AWG
Jacket: LSZH (Low Smoke Zero Halogen)
Condition: Refurbished — Tested and validated by T.E.S IT-SOLUTIONS

Manufacturer documentation: NVIDIA MCP7Y10-Nxxx 800Gb/s OSFP to 2x400G QSFP112 DAC splitter product specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.

Compatibility & Constraints

Compatible with NVIDIA Quantum-2 NDR switches (OSFP) configured for split / breakout mode, and with QSFP112 endpoints such as ConnectX-7 400G adapters. Not compatible with QSFP56 HDR 200G adapters or QSFP28 EDR / 100G adapters (different connector and lane structure). Not compatible with QSFP-DD ports. Switch port must be configured for 2x400G breakout in the InfiniBand subnet manager. Fixed 3m length, no field re-termination. At 3m the assembly is at the upper edge of passive copper reach for 100G PAM4 — sustained operation requires controlled bend radius and clean cable tray paths.

Why T.E.S IT-SOLUTIONS

Every cable is electrically validated for PAM4 lane integrity, fanout mapping, and connector condition before shipment. T.E.S IT-SOLUTIONS ships worldwide with secure packaging and offers expert consultation on InfiniBand NDR fabric topology and breakout configuration. Standard handling time is 1-3 business days.

Frequently Asked Questions

What signaling does the MCP7Y10-N003 have?

The MCP7Y10-N003 signaling is PAM4, 100Gb/s per lane.

What is the MCP7Y10-N003 NOT compatible with?

This is a downlink fanout cable, not an aggregation or end-to-end interconnect. Confirm fitment against your platform before ordering MCP7Y10-N003.

What condition is the MCP7Y10-N003 supplied in, and who sells it?

The MCP7Y10-N003 is supplied in Refurbished condition by T.E.S IT-SOLUTIONS from Haifa, Israel, with 1-3 business day handling and worldwide B2B shipping.
