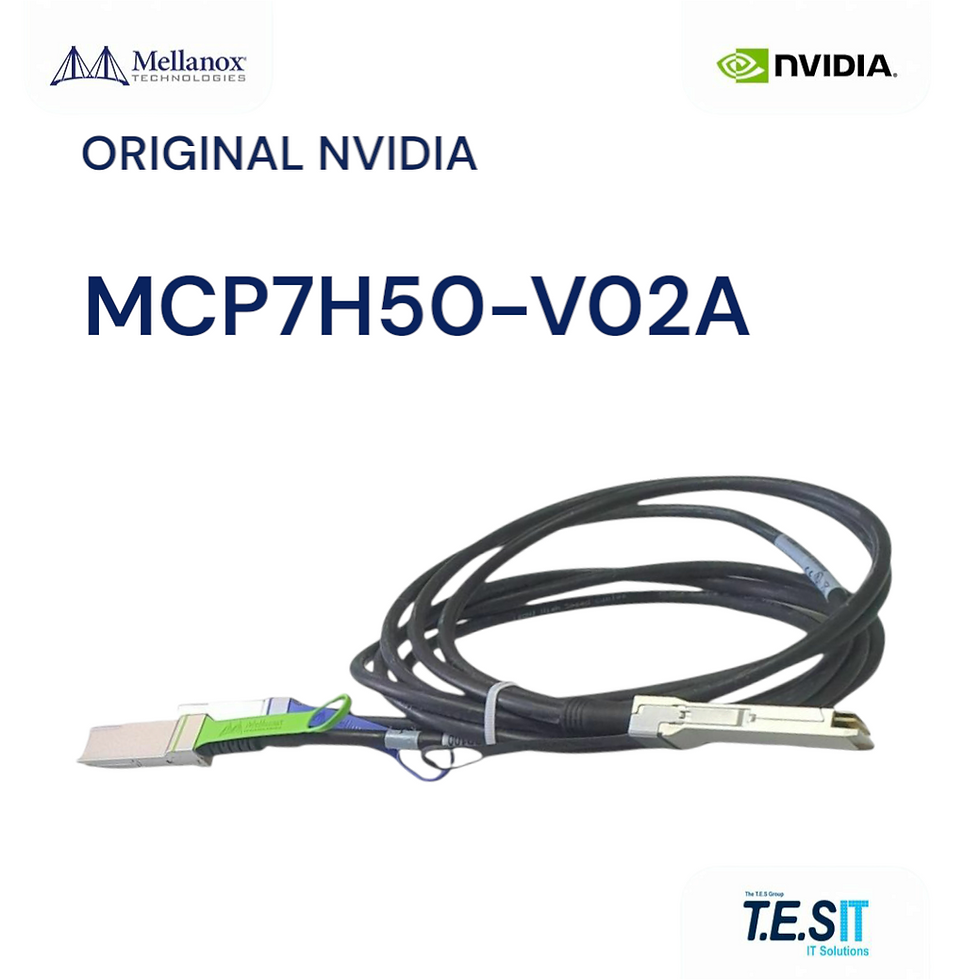

NVIDIA Mellanox MCP7H50-V02A 200Gb/s QSFP56 Passive Copper Hybrid Splitter Cable, 2.5m: This is a 2.5-meter passive copper Direct Attach Cable (DAC) that splits one 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 connections. The V02A variant uses 26AWG conductors to support its 2.5m reach. There is no FEC retimer, no electronics, and no power draw. This is not a transceiver, not an Active Optical Cable, and not an active electrical cable. This is a new, factory-sealed unit.
Engineering Context
The MCP7H50 family bridges the HDR/200GbE generation to two HDR100 / 100GbE endpoints, doubling effective port density on the 200Gb/s side. The 200Gb/s QSFP56 end carries 4 lanes of 50Gb/s PAM4 signaling. Each 100Gb/s QSFP56 end carries 2 lanes of 50Gb/s PAM4 (HDR100). At 2.5m, the heavier 26AWG conductors are used to maintain signal integrity over the full passive run. The cable adds no end-to-end latency beyond propagation delay, draws 0W, and contains no diagnostic firmware. The V02A differs from the H02A primarily by jacket compound; both share the same 26AWG / 2.5m electrical reach.
Deployment & Use Cases
In-rack and short adjacent-rack fan-out from a 200GbE Spectrum-2 / SN3700 switch port to two ConnectX-5 or ConnectX-6 100GbE adapter ports. Doubling 200G port utilization in HDR100 / 100GbE deployments. HPC, AI training, and high-bandwidth storage clusters where 1.5m is too short and active optics are unnecessary at this distance.
Technical Specifications
OEM: NVIDIA Mellanox
Part Number: MCP7H50-V02A
Form Factor: QSFP56 to 2x QSFP56 (Y-splitter)
Data Rate: 200Gb/s split into 2x 100Gb/s
Cable Type: Passive Copper DAC (Hybrid Splitter)
Length: 2.5m (fixed)
Conductor Gauge: 26AWG
Power Draw: 0W (fully passive)
Condition: New — Factory-sealed
Compatibility & Hard Constraints
Designed for the NVIDIA Quantum HDR and Spectrum-2 family on the 200Gb/s end, paired with ConnectX-5 or ConnectX-6 adapters in HDR100 / 100GbE mode on the breakout ends. The 200Gb/s and 100Gb/s ends are not interchangeable. Not compatible with EDR-only ports that lack splitter support. Does not break out to SFP28 or QSFP28 form factors — both ends are QSFP56. Length is fixed at 2.5m and cannot be extended; for runs longer than 3m an Active Optical Cable variant should be used instead.
