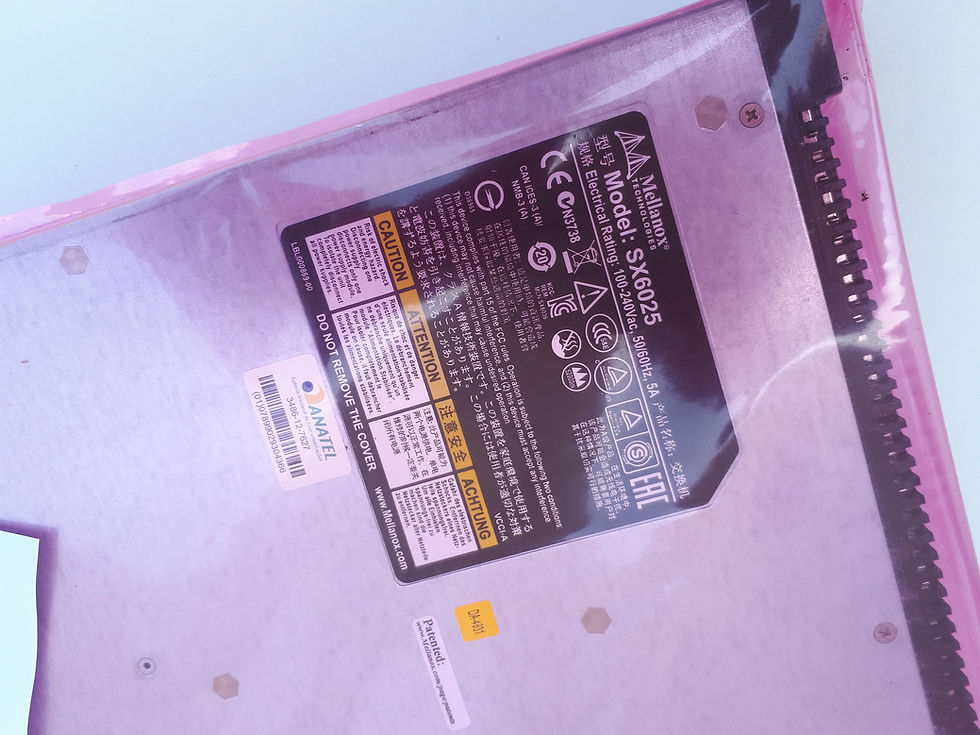

NVIDIA Mellanox MSX6025F-1SFR SwitchX-2 FDR 56Gb/s InfiniBand Switch (1U, P2C Airflow): This is a 36-port externally-managed FDR InfiniBand switch in a 1U chassis with QSFP+ connectors. The MSX6025F-1SFR runs the SwitchX-2 ASIC at FDR (56 Gb/s per port) and ships with a single AC power supply and power-to-connector (P2C) standard airflow. This is an externally-managed switch — subnet management must be provided by an external host running OpenSM, or by a managed switch elsewhere in the fabric. This is a new unit shipped in factory-sealed condition.
Engineering Context
Built on the SwitchX-2 silicon, the MSX6025 family delivers 4.032 Tb/s aggregate non-blocking bandwidth across 36 QSFP+ ports at 56 Gb/s FDR. Port-to-port latency is approximately 170 nanoseconds, suitable for tightly-coupled HPC clusters. The platform supports VPI (Virtual Protocol Interconnect) hardware paths, but in this externally-managed SKU the IB subnet must be provided by OpenSM on a fabric host. Standard depth chassis fits 19-inch racks. P2C airflow draws air from the power-supply side and exhausts at the QSFP+ port side — the standard front-to-back direction for typical hot-aisle/cold-aisle layouts.
Deployment & Use Cases
Edge or leaf switch in new HPC cluster builds running MPI workloads such as OpenFOAM, GROMACS, NAMD, or LS-DYNA. GPU-Direct RDMA fabrics for machine learning training jobs. Storage cluster interconnect for Lustre, GPFS, and BeeGFS deployments. Any rack with standard cold-aisle intake at the PSU/rear side and hot-aisle exhaust at the port/front side.
Technical Specifications
OEM: NVIDIA Mellanox
Part Number: MSX6025F-1SFR
Product Family: SwitchX-2 SX6025
Form Factor: 1U Rack-mountable, Standard Depth
Ports: 36x QSFP+
Port Speed: FDR 56 Gb/s per port
Switching Capacity: 4.032 Tb/s aggregate non-blocking
Latency: ~170 ns port-to-port
Management: Externally managed (no internal subnet manager)
Power Supply: 1x AC PSU (non-redundant)
Airflow: P2C (Power-to-Connector, standard)
Condition: New — Factory Sealed, Shipped by T.E.S IT-SOLUTIONS
Compatibility & Constraints
Compatible with NVIDIA Mellanox ConnectX-3, ConnectX-3 Pro, ConnectX-4, and ConnectX-5 VPI HCAs. Works with FDR-rated QSFP+ copper DAC and active optical cables. Requires an external subnet manager — typically OpenSM on a Linux host, or a managed switch elsewhere in the fabric — this unit cannot self-manage the IB subnet. Single PSU configuration provides no power redundancy; deploy only where a UPS or alternate power feed is acceptable. Airflow is P2C (standard) — verify it matches the rack thermal layout before installation; do not mix P2C and C2P units in the same hot-aisle row. Not suitable as a standalone Ethernet switch unless connected ConnectX adapters are placed in Ethernet VPI mode, and even then routing/ETH gateway features are limited.
