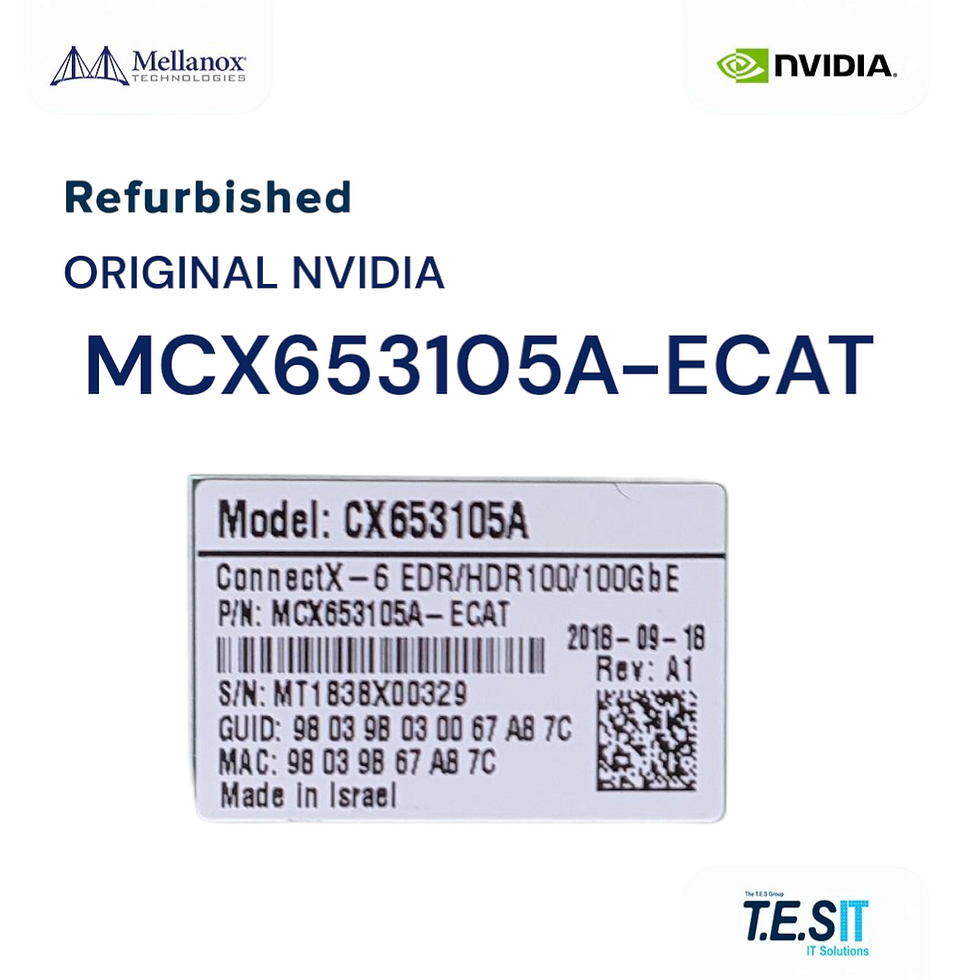

NVIDIA Mellanox® MCX653105A-ECAT — ConnectX-6 VPI Single-Port HDR100/100GbE Adapter (QSFP56, PCIe 4.0 x16)
Technical Identity
The NVIDIA Mellanox® MCX653105A-ECAT is a single-port ConnectX-6 VPI (Virtual Protocol Interconnect) adapter. The port is software-selectable between InfiniBand HDR100 and 100 Gigabit Ethernet, terminated in a single QSFP56 cage. Host interface is PCIe 4.0 x16 (auto-negotiating to PCIe 3.0 x16). The card is half-height, half-length with a tall (full-height) bracket pre-installed (denoted by the CAT suffix). Condition: Refurbished Grade A — checked at T.E.S IT-SOLUTIONS (see Inspection and checks).
Specifications
Manufacturer documentation: NVIDIA ConnectX-6 VPI adapter card user manual: introduction. T.E.S IT-SOLUTIONS is independent of NVIDIA.
What This Is NOT
NOT a dual-port adapter. Single-port (the "1" after "MCX653" denotes port count). For dual-port at the same speed see MCX653106A-ECAT.
NOT a 200 Gb/s HDR adapter. Max line rate is 100 Gb/s (HDR100 or 100GbE). For full HDR 200 Gb/s see MCX653105A-HDAT.
NOT a ConnectX-7. ASIC is ConnectX-6 — firmware, drivers, and tuning must match this generation.
NOT Ethernet-only and NOT InfiniBand-only. This is a VPI dual-protocol card; port mode is set via mlxconfig.
NOT a Multi-Host or Socket Direct variant. Single PCIe x16 root, single host.
NOT an OSFP / QSFP-DD card. Cage is QSFP56 only; OSFP transceivers / cables will not fit.
NOT bundled with QSFP56 transceivers, DAC/AOC cables, or short bracket — sold standalone.
Compatibility
InfiniBand switches: NVIDIA Quantum HDR (MQM8700/MQM8790 series), Switch-IB 2 EDR (SB7800/SB7890), and earlier EDR/FDR fabrics — runs at the highest common rate.
Ethernet switches: NVIDIA Spectrum / Spectrum-2 / Spectrum-3 (SN2700, SN3700, SN4000-series), or any 100GbE QSFP28/QSFP56 switch from Arista, Cisco, Juniper, Dell — auto-negotiating down to 50/40/25/10/1 GbE.
Cabling — QSFP56 native: MCP1650-V00xExx (passive DAC), MFA1A00-Hxxx (HDR AOC), MMA1T00-VS (200G optical transceiver, also operates at 100G).
Cabling — QSFP28 backward compatibility: The QSFP56 cage accepts QSFP28 modules; standard 100GbE QSFP28 DAC/AOC/SR4/LR4 transceivers link at 100GbE.
Port-mode switching: mlxconfig -d <pci-id> set LINK_TYPE_P1=<1=IB | 2=ETH | 3=AUTO>, then power-cycle the host.
Server platforms: Dell PowerEdge R-series (R740/R750/R760), HPE ProLiant DL3xx/DL5xx Gen10+/Gen11, Lenovo ThinkSystem SR-series, Supermicro X11/X12/X13 dual-socket platforms with PCIe 4.0 x16 slots.
GPU pairing: Supports NVIDIA GPUDirect RDMA with A100, H100, V100, A40 GPUs on the same NUMA root.
Firmware tooling: mlxfwmanager from MLNX_OFED / MFT; current FW family is fw-ConnectX6 22.x.
Frequently Asked Questions (FAQ)
What is the NVIDIA Mellanox MCX653105A-ECAT?
The MCX653105A-ECAT is a single-port ConnectX-6 VPI adapter with a QSFP56 cage, capable of 100 Gb/s InfiniBand HDR100 or 100 Gigabit Ethernet (software-selectable per port). Host bus is PCIe 4.0 x16 and the card ships with a tall full-height bracket.
How do I switch the MCX653105A-ECAT between Ethernet and InfiniBand?
MCX653105A-ECAT: Use mlxconfig from MLNX_OFED / MFT: mlxconfig -d <pci-id> set LINK_TYPE_P1=<1=IB | 2=ETH | 3=AUTO> and reboot the host. AUTO lets the link auto-negotiate based on the peer switch. Drivers: MLNX_OFED on Linux, WinOF-2 on Windows Server, nmlx5 on VMware ESXi.
What switches and cables are compatible with the MCX653105A-ECAT?
MCX653105A-ECAT: InfiniBand: NVIDIA Quantum HDR switches (MQM8700-series) and Switch-IB 2 EDR. Ethernet: NVIDIA Spectrum SN2700/SN3700/SN4000 100GbE switches or any 100GbE QSFP28/QSFP56 switch. Cables: QSFP56 DAC (MCP1650-V0xx), QSFP56 AOC (MFA1A00-Hxxx), QSFP56 optical transceivers (MMA1T00-VS), and standard QSFP28 100GbE DAC/AOC/SR4/LR4 modules via backward compatibility.
Is this a dual-port card or single-port?
MCX653105A-ECAT: Single-port. The "1" in MCX653105 indicates one port. The dual-port equivalent at the same 100 Gb/s rate is MCX653106A-ECAT.
Does the MCX653105A-ECAT support PCIe 3.0 servers?
MCX653105A-ECAT: Yes. The PCIe interface auto-negotiates down to PCIe 3.0 x16. At PCIe 3.0 x16 the host bus ceiling is ~126 Gb/s — sufficient for 100 Gb/s line rate but with reduced headroom. PCIe 4.0 x16 is recommended for sustained bidirectional 100GbE / HDR100.
What workloads does this adapter accelerate?
MCX653105A-ECAT: HPC clusters with MPI over RDMA, AI/ML training fabrics with GPUDirect RDMA, NVMe-oF storage (initiator or target) over RoCE v2 or InfiniBand, virtualized data centers with SR-IOV, SDN/NFV with ASAP² hardware OVS, and TLS/IPsec offloaded edge traffic.
What condition is supplied by T.E.S IT-SOLUTIONS?
MCX653105A-ECAT: Refurbished Grade A. Each unit is checked by T.E.S IT-SOLUTIONS before it ships (see Inspection and checks). Units ship anti-static packed from Haifa, Israel with global B2B shipping options.
