NVIDIA Mellanox MCP7H60-W01A 400GbE QSFP-DD to 2x200GbE QSFP56 - MCP7H60-W01AR30

Part no.MCP7H60-W01AR30

€330.00

In stockCondition: New

Request a quote

Checkout runs on the secure Wix checkout page.

Where to buy the MCP7H60-W01AR30: T.E.S IT-SOLUTIONS sells the MCP7H60-W01AR30 at €330, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Received, catalogued and inspected, and checked before it ships.

See the production flow
MCP7H60-W01AR30Tap the photo for full size

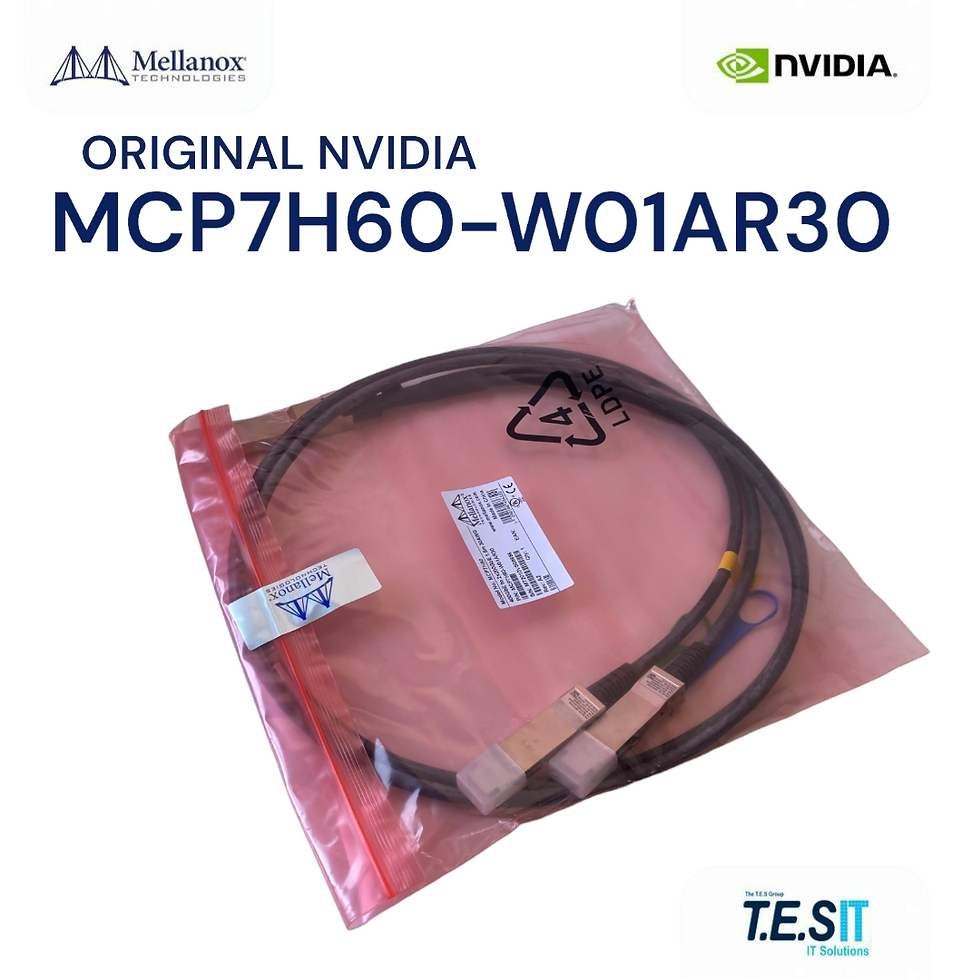

NVIDIA Mellanox MCP7H60-W01A 400GbE QSFP-DD to 2x200GbE QSFP56 - MCP7H60-W01AR30, photo 1 of 6

Description

NVIDIA Mellanox® MCP7H60-W01A (NVIDIA P/N 980-9IA3V-00W01A) is a passive copper splitter DAC that breaks one 400GbE QSFP-DD port into two independent 200GbE QSFP56 ports. It IS an Ethernet splitter cable; it IS NOT an InfiniBand HDR/NDR cable, an active or optical cable, or a 1:1 point-to-point DAC. Condition: New.

Engineering Context. The QSFP-DD side carries 8 lanes of 50Gb/s PAM4 (400GbE aggregate). Each QSFP56 leg receives 4 lanes of 50Gb/s PAM4 = 200GbE. Conductor is 26AWG twinax with an LSZH (Low Smoke Zero Halogen) jacket. Length is 1.5m. As a passive copper cable, it draws no host power for the cable assembly itself and adds negligible latency.

Deployment & Use Cases. Used to double the effective Ethernet port density of a Spectrum-3 / Spectrum-4 leaf switch by running one 400GbE QSFP-DD port to two 200GbE-capable NICs (e.g., ConnectX-6 Dx in 200GbE mode). Typical workloads: dense leaf-to-server fan-out, virtualization clusters with 200GbE-attached hosts, and east-west aggregation in AI / HPC Ethernet fabrics.

Technical Specifications.

Cable type: Passive copper splitter DAC (twinax)
Topology: QSFP-DD to 2x QSFP56 (1:2 splitter)
Aggregate data rate: 400GbE
Per-leg data rate: 200GbE
Lane structure: 8 x 50Gb/s PAM4 split as 2 x (4 x 50Gb/s PAM4)
Length: 1.5m
Conductor: 26AWG
Jacket: LSZH
NVIDIA Part Number: 980-9IA3V-00W01A

Manufacturer documentation: NVIDIA MCP7H60-W0xxRyy 400GbE to 2x200GbE DAC splitter product specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.

Compatibility & Constraints. Compatible with NVIDIA Spectrum-3 / Spectrum-4 QSFP-DD switch ports on the trunk side and 200GbE QSFP56 endpoints (e.g., ConnectX-6 Dx) on the leg side. NOT compatible with InfiniBand HDR or NDR fabrics, OSFP ports, QSFP112 cages, or 100GbE QSFP28-only NICs. Reach is fixed at 1.5m as a passive copper splitter.

Why T.E.S. Sourced and tested by T.E.S IT-SOLUTIONS. See tes-itsolutions.com. Handling time 1-3 business days; worldwide shipping with tracking.

Frequently Asked Questions

What is the MCP7H60-W01AR30 NOT compatible with?

it IS NOT an InfiniBand HDR/NDR cable, an active or optical cable, or a 1:1 point-to-point DAC. Confirm fitment against your platform before ordering MCP7H60-W01AR30.

What condition is the MCP7H60-W01AR30 supplied in, and who sells it?

The MCP7H60-W01AR30 is supplied in New condition by T.E.S IT-SOLUTIONS from Haifa, Israel, with 1-3 business day handling and worldwide B2B shipping.

Are there deployment constraints on the MCP7H60-W01AR30?

NOT compatible with InfiniBand HDR or NDR fabrics, OSFP ports, QSFP112 cages, or 100GbE QSFP28-only NICs. This applies to MCP7H60-W01AR30 specifically.
