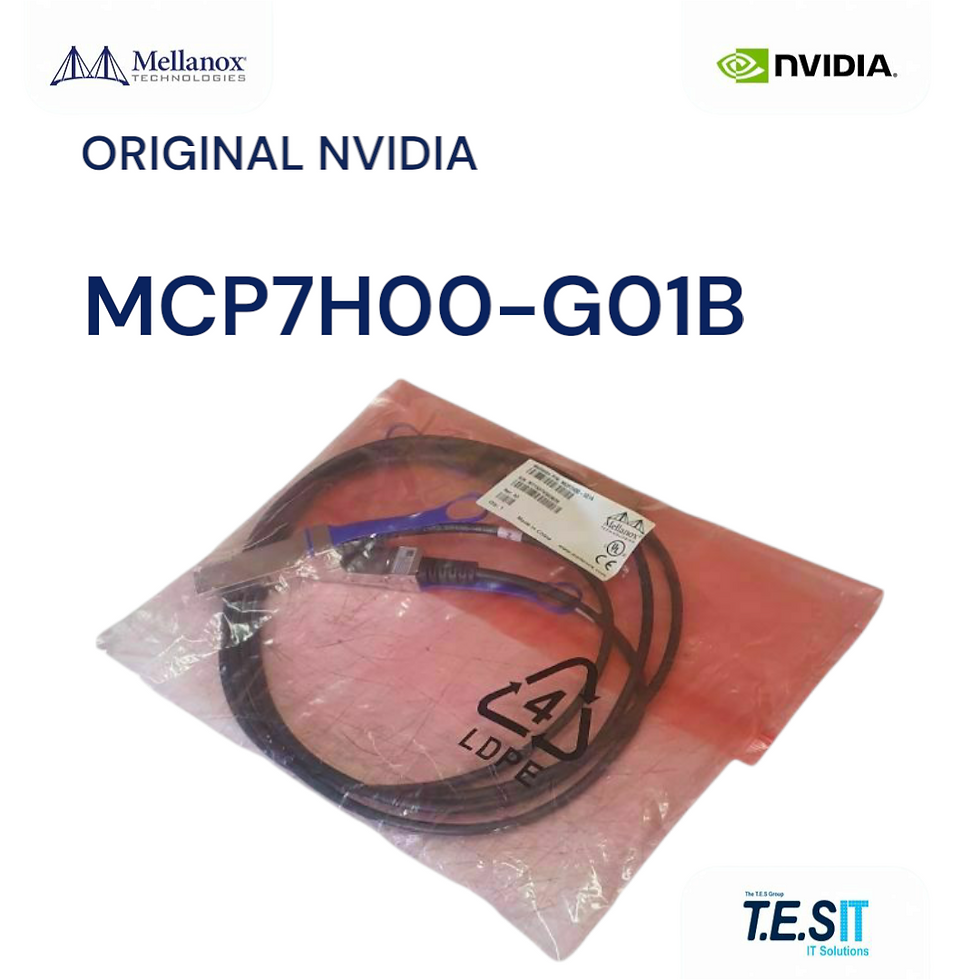

NVIDIA Mellanox® MCP7H00-G01B — 100GbE QSFP28 to 2x50GbE 2xQSFP28 Passive Breakout DAC, 1.75m
Technical Identity
The NVIDIA Mellanox® MCP7H00-G01B is a passive copper hybrid (breakout) cable from the NVIDIA LinkX MCP7H00 family: ETH 100Gb/s to 2x50Gb/s, QSFP28 to 2xQSFP28. Length: 1.75m per the unit label. The single 100GbE QSFP28 end carries four 25Gb/s NRZ copper pairs; each 50GbE QSFP28 end receives two of them (2 lanes x 25Gb/s = 50GbE per leg). Protocol classification: Ethernet. Condition: NEW factory stock.
Note: the 1.75m length is an OEM-channel variant; NVIDIA's public MCP7H00 ordering table lists 1m / 1.5m / 2m / 2.5m / 3m / 5m entries. Family specifications below are from the NVIDIA MCP7H00 product brief; wire gauge for this specific length should be verified against the unit label.
Specifications
Manufacturer documentation: NVIDIA MCP7H00-G0xx 100GbE to 2x50GbE DAC splitter product specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.
Engineering Context
Hybrid breakout DACs let one 100GbE switch port serve two 50GbE endpoints, doubling usable port density for servers that do not need the full 100Gb/s. The lane math is fixed by the copper pair mapping (pairs 1-2 to leg one, pairs 3-4 to leg two per the NVIDIA product brief), so the head-end port must be configured for 2x50GbE split operation before the links come up. Passive construction keeps latency at pure propagation delay (approx. 4.5 ns/m) with near-zero power.
Use Cases
Connecting two 50GbE servers to a single 100GbE top-of-rack switch port
Migration scenarios mixing 50GbE server NICs with a 100GbE aggregation layer
Port-density optimization in racks where switch ports are the limiting resource
What This Is NOT
NOT a 1-to-1 cable. This is a 1-to-2 breakout; both 50GbE legs must terminate on 50GbE-capable ports.
NOT a 1-to-4 breakout. 100GbE to 4x25GbE (QSFP28 to 4xSFP28) is the MCP7F00 family.
NOT active and NOT optical. Passive copper only — no ACC electronics, no AOC optics.
NOT a QSFP56 / QSFP-DD / SFP28 cable. All three connectors are QSFP28.
NOT an InfiniBand cable. Ethernet classification only.
NOT supplied with transceivers, adapters or other accessories.
Compatibility & Hard Constraints
Typical head-end platforms: NVIDIA Spectrum-family 100GbE QSFP28 switch ports with 2x50GbE breakout (split-port) configuration enabled.
Typical endpoints: QSFP28 ports operating at 50GbE in 2x25G lane mode (e.g., suitable ConnectX-family adapters); verify 50GbE lane-mode support per endpoint.
Reach: 1.75m fixed — passive DAC reach cannot be extended.
Port configuration: head-end switch port must be split before link bring-up; verify FEC settings on all three ports.
Power: drawn from host cages (max 0.1W) — no external supply.
Pre-deployment verification: confirm split-port support, firmware and cable EEPROM recognition on the specific switch and NIC models.
Frequently Asked Questions (FAQ)
What is the NVIDIA Mellanox MCP7H00-G01B?
The MCP7H00-G01B is a passive copper hybrid (breakout) cable from the NVIDIA LinkX MCP7H00 family: one 100GbE QSFP28 end splits into two 50GbE QSFP28 ends. Length: 1.75m per the unit label. Each 50GbE leg carries two 25Gb/s NRZ copper pairs.
How does the MCP7H00-G01B split 100GbE into 2x50GbE?
MCP7H00-G01B: Per the NVIDIA MCP7H00 product brief, the single QSFP28 end drives four copper pairs; pairs 1-2 go to the first 50GbE QSFP28 end and pairs 3-4 to the second. Each 50GbE leg therefore runs 2 lanes x 25Gb/s NRZ.
Is the MCP7H00-G01B active or passive, copper or optical?
MCP7H00-G01B: Passive copper. No signal-conditioning electronics and no optics. It is not an ACC and not an AOC.
Is the MCP7H00-G01B a 1-to-4 breakout?
MCP7H00-G01B: No. It is a 1-to-2 hybrid: 1x 100GbE QSFP28 to 2x 50GbE QSFP28. The 100GbE-to-4x25GbE (QSFP28 to 4xSFP28) breakout is the MCP7F00 family.
What hardware works with the MCP7H00-G01B?
MCP7H00-G01B: Typical head-end platforms are NVIDIA Spectrum-family 100GbE QSFP28 switch ports configured for 2x50GbE breakout; typical endpoints are QSFP28 adapters or switch ports running 50GbE in 2x25G lane mode. The head-end port must support split-port configuration.
Can the MCP7H00-G01B be used for InfiniBand?
MCP7H00-G01B: No. NVIDIA classifies the MCP7H00 family as ETH 100Gb/s to 2x50Gb/s. It is not an InfiniBand cable.
What condition is the MCP7H00-G01B supplied in by T.E.S IT-SOLUTIONS?
MCP7H00-G01B: NEW factory stock. Units are new and unused, verified against the unit label, and ship in anti-static packaging from Haifa, Israel with global B2B shipping.
Why T.E.S IT-SOLUTIONS
Every unit ships with: (1) incoming stock inspection and part-number verification against the unit label, (2) professional anti-static packaging, (3) global B2B shipping from Haifa, Israel, (4) commercial invoice and export documentation for international buyers, (5) technical consultation for data-center network design at no extra cost. See tes-itsolutions.com.
Condition
Condition: NEW. New, unused factory stock supplied by T.E.S IT-SOLUTIONS. Part number verified against the unit label. Shipped in professional anti-static packaging from Haifa, Israel with global B2B shipping.
