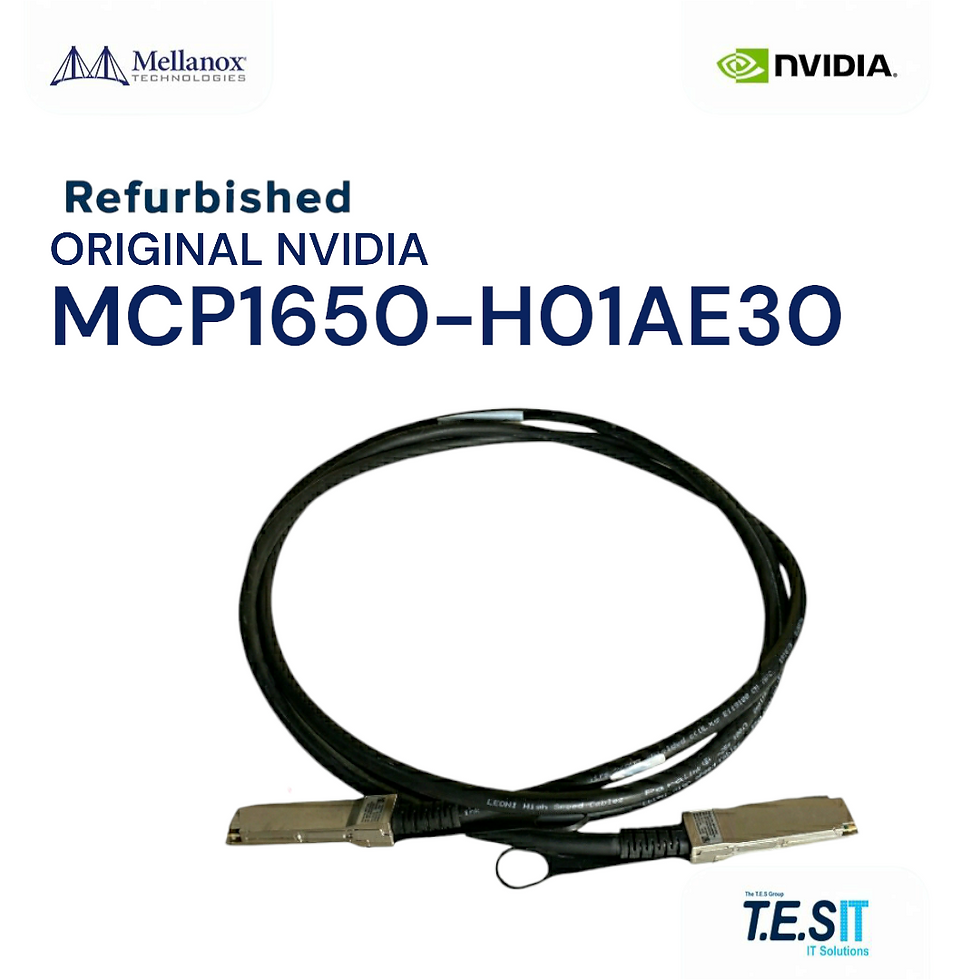

NVIDIA Mellanox MCP1650-H01AE30 200Gb/s HDR QSFP56 Passive Copper Cable, 1.5m 30AWG: This is a 1.5-meter passive direct-attach copper (DAC) cable engineered for HDR InfiniBand (200Gb/s) point-to-point interconnect. The cable terminates in QSFP56 connectors at both ends, uses 30 AWG conductors for a thinner cable profile, and requires no external power. This is a fixed-length passive assembly, not an active or optical cable. This is a refurbished unit.
Engineering Context
The MCP1650-H01AE30 is a passive copper cable optimized for short-reach HDR InfiniBand interconnect inside the rack. The QSFP56 form factor carries 4 lanes of 50Gb/s PAM4 signaling for the aggregate 200Gb/s rate. The 30 AWG conductor gauge yields a thinner, more flexible cable than 26 AWG variants, easing dense rack cable management at the 1.5m reach. As a passive cable it draws no operational power and adds no signal regeneration latency. The pulltab is black and the jacket is LSZH (Low Smoke Zero Halogen).
Deployment & Use Cases
HDR InfiniBand fabrics built around NVIDIA Quantum HDR switches and ConnectX-6 adapters. Top-of-rack to compute node connections in HPC and AI clusters. GPU-to-GPU interconnect inside an AI training pod. Storage-to-compute interconnect at the rack level where dense cabling and minimal bend radius matter.
Technical Specifications
Manufacturer documentation: NVIDIA MCP1650-H0xxEyy 200Gb/s QSFP56 DAC product specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.
Compatibility & Hard Constraints
Compatible with NVIDIA Quantum HDR InfiniBand switches (QM8700, QM8790) and ConnectX-6 HDR adapters. Direct QSFP56-to-QSFP56 cable; does not support 4x25G or 2x100G breakout. Not compatible with EDR (100Gb/s) or QDR (40Gb/s) systems that use the older QSFP28/QSFP+ form factor. Reach is bounded by the fixed 1.5m length. Passive copper at 200Gb/s does not regenerate the signal; for longer spans use AOCs or optical transceivers.
Frequently Asked Questions (FAQ)
What is the MCP1650-H01AE30?
The MCP1650-H01AE30 is a 1.5m passive copper DAC with QSFP56 connectors, rated for HDR 200Gb/s InfiniBand, 30AWG.
Is this a splitter cable?
MCP1650-H01AE30: No. It is a straight 1-to-1 QSFP56-to-QSFP56 point-to-point assembly.
Will T.E.S IT-SOLUTIONS confirm the configuration of MCP1650-H01AE30 before shipping?
MCP1650-H01AE30: Yes. T.E.S IT-SOLUTIONS (tes-itsolutions.com) inspects each unit and verifies vendor markings before dispatch from Haifa, Israel.
