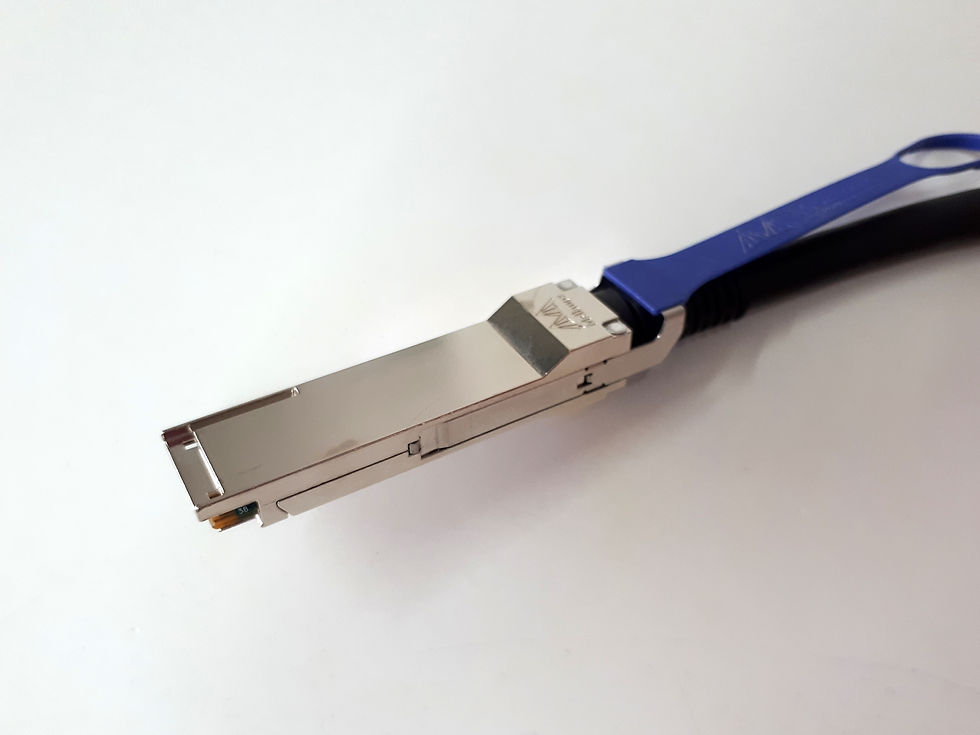

NVIDIA Mellanox MC2207126-004 Passive Copper Cable, VPI, up to 56Gb/s, QSFP, 4m: This is a 4m passive direct-attach copper (DAC) cable for QSFP+ ports, supporting VPI operation up to 56Gb/s — InfiniBand FDR/FDR10 or 56GbE Ethernet. The cable is fully passive and requires no power from host ports. This is NOT an active copper or AOC cable, and not a transceiver. This listing is for a Lot of 3 refurbished units.
Engineering Context
The MC2207126-004 is a 4m passive QSFP-to-QSFP twinax assembly designed for short-reach intra-rack and adjacent-rack interconnects in HPC and data center fabrics. It uses copper twinax wire pairs with no active electronics, which keeps power draw at 0W per port. As a VPI cable it can be used in either InfiniBand or Ethernet mode, depending on switch and adapter configuration. Latency is in the nanosecond range — significantly lower than any optical AOC. The connectors comply with the SFF-8436 QSFP+ mechanical specification.
Deployment & Use Cases
Top-of-Rack switch to server NIC connections in HPC clusters. InfiniBand FDR/FDR10 fabric links between Mellanox switches and ConnectX-2 / ConnectX-3 adapters. 56GbE Ethernet uplinks within or between adjacent racks. Storage fabric interconnects where short reach makes optical cabling unnecessary. GPU compute node interconnect at 56Gb/s on legacy Mellanox infrastructure.
Technical Specifications
OEM: NVIDIA Mellanox
Part Number: MC2207126-004
Form Factor: QSFP+ to QSFP+ (SFF-8436)
Data Rate: Up to 56Gb/s (IB FDR or 56GbE Ethernet)
Cable Type: Passive Copper Direct Attach (DAC)
Length: 4m
Protocol: InfiniBand VPI / 56GbE Ethernet
Power Draw: 0W (passive, no electronics)
Conductor: Copper twinax
Lot Size: 3 units
Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS
Compatibility & Constraints
Compatible with Mellanox SwitchX-2 / SX6000 series FDR switches and ConnectX-3 / ConnectX-3 Pro adapters at 56Gb/s. Compatible with ConnectX-3 / ConnectX-3 Pro / ConnectX-3 VPI adapters in FDR or 56GbE mode. NOT rated for EDR (100Gb/s) or HDR (200Gb/s) operation. Maximum data rate is 56Gb/s. Fixed 4m length; passive copper cables cannot be extended or repaired. OEM-equivalent compatibility with third-party QSFP+ ports is not guaranteed; verify with your switch vendor compatibility list before deployment.
