NVIDIA Mellanox

NVIDIA Mellanox MC2207310-005 Cable QSFP FDR InfiniBand 56Gb/s AOC 5m

Part no.MC2207310-005

€55.00

In stockCondition: Refurbished

Request a quote

Checkout runs on the secure Wix checkout page.

Where to buy the MC2207310-005: T.E.S IT-SOLUTIONS sells the MC2207310-005 at €55, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Recovered from end-of-life equipment, inspected and tested before it ships.

See the production flow
MC2207310-005Tap the photo for full size

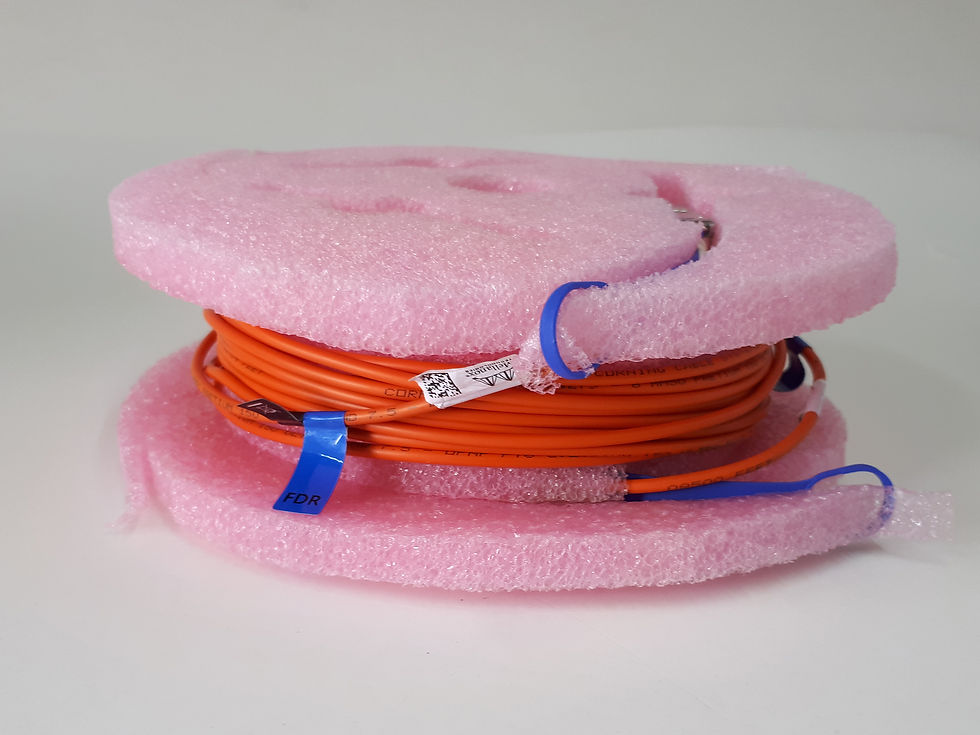

NVIDIA Mellanox MC2207310-005 Cable QSFP FDR InfiniBand 56Gb/s AOC 5m, photo 1 of 3

Description

NVIDIA Mellanox MC2207310-005 56Gb/s FDR InfiniBand QSFP Active Optical Cable, 5m: This is a 5-meter active optical cable (AOC) engineered for FDR InfiniBand at 56Gb/s, with integrated QSFP+ form factor on both ends. The cable uses VCSEL 850nm optics over OM3 multi-mode fiber and is factory-terminated for plug-and-play deployment. This is NOT a copper DAC and NOT an EDR (100Gb/s) QSFP28 cable — it is a FDR-class QSFP+ AOC. Condition: Refurbished, tested.

Engineering Context: The MC2207310-005 transports 4x14Gb/s NRZ lanes over MMF using integrated VCSELs at 850nm, with typical per-end power consumption under 1W — well within the QSFP+ thermal envelope. The factory-terminated optical assembly eliminates the fiber end-face contamination risk inherent to discrete transceiver-plus-patch-cord installations and removes one variable from link-budget troubleshooting.

Deployment & Use Cases: Used in FDR InfiniBand HPC clusters, GPU compute fabrics running CUDA-aware MPI, Lustre and GPFS storage interconnects, and spine-leaf links in data centers running mixed FDR InfiniBand and 40GbE workloads on VPI-capable Mellanox switches.

Technical Specifications:

Primary Protocol: FDR InfiniBand 56Gb/s (4x14Gb/s NRZ)
Backward-compatible Rates: FDR10, QDR, DDR InfiniBand
Ethernet Mode: 40GbE on VPI-capable ports
Form Factor: QSFP+ to QSFP+
Optical Source: VCSEL 850nm, integrated
Fiber Type: OM3 multi-mode, factory-terminated
Cable Length: 5 meters
Typical Power: under 1W per end
Operating Temperature: 0°C to 70°C (commercial)
Condition: Refurbished, tested

Compatibility & Constraints: Compatible with NVIDIA Mellanox SwitchX/SwitchX-2 platforms (SX6018, SX6025, SX6036 and IS5030/IS5035 series) and ConnectX-3 / ConnectX-3 Pro VPI adapters. Supports 40GbE on VPI Ethernet ports. NOT compatible with EDR 100Gb/s QSFP28 switch ports (Switch-IB / Spectrum) — those require QSFP28 cabling such as the MFA1A00 series. Not rated for outdoor or industrial high-temperature environments.

Why T.E.S: T.E.S IT-SOLUTIONS specializes in refurbished NVIDIA Mellanox enterprise networking hardware. This MC2207310-005 ships from Haifa, Israel with 1–3 day handling. For bulk pricing, alternate lengths, or guidance on FDR-to-EDR migration, contact TES.

Frequently Asked Questions

What is the MC2207310-005 NOT compatible with?

This is NOT a copper DAC and NOT an EDR (100Gb/s) QSFP28 cable — it is a FDR-class QSFP+ AOC. Confirm fitment against your platform before ordering MC2207310-005.

What condition is the MC2207310-005 supplied in, and who sells it?

The MC2207310-005 is supplied in Refurbished condition by T.E.S IT-SOLUTIONS from Haifa, Israel, with 1-3 business day handling and worldwide B2B shipping.

Are there deployment constraints on the MC2207310-005?

NOT compatible with EDR 100Gb/s QSFP28 switch ports (Switch-IB / Spectrum) — those require QSFP28 cabling such as the MFA1A00 series. This applies to MC2207310-005 specifically.
