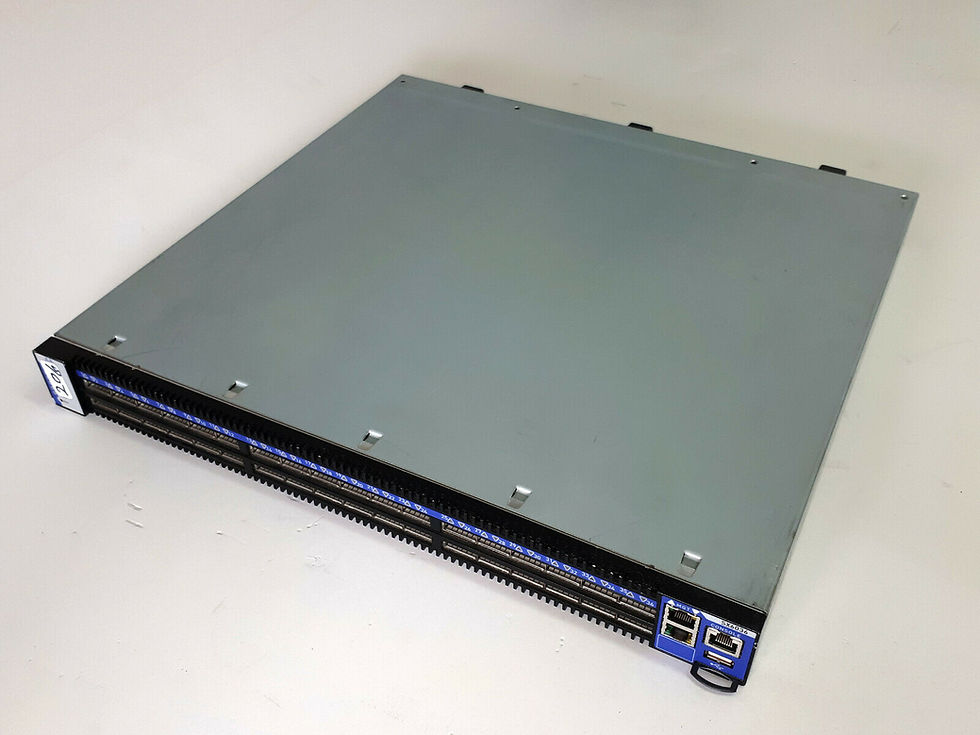

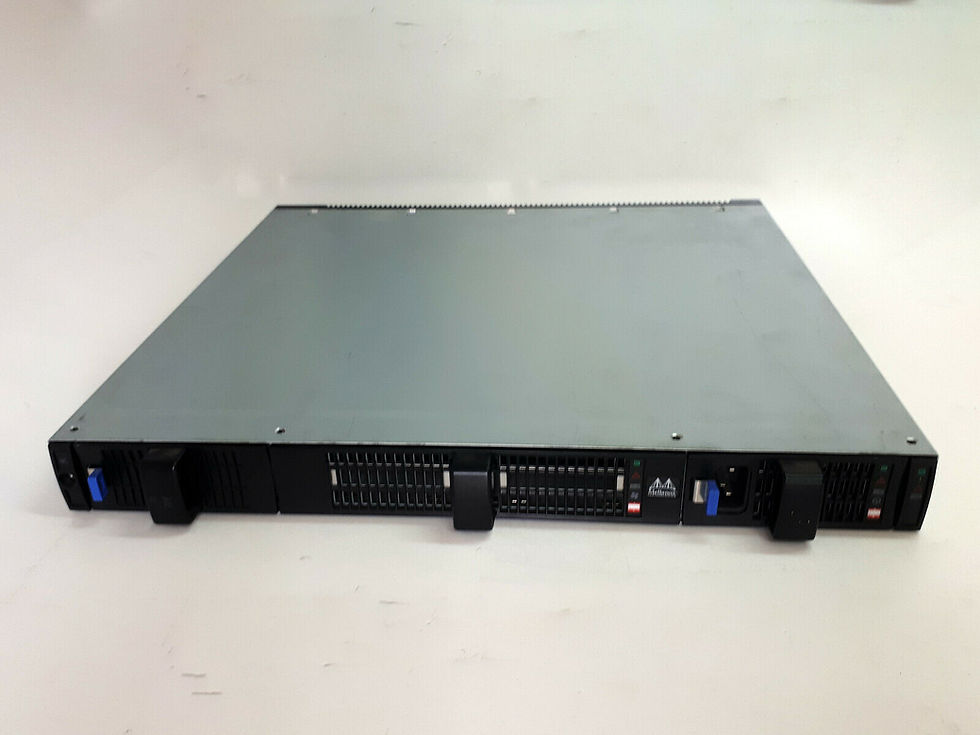

NVIDIA Mellanox MSX6036F-1BRR SwitchX FDR 36-Port QSFP InfiniBand C2P: The NVIDIA Mellanox MSX6036F-1BRR is a SwitchX based FDR InfiniBand 1U fully managed switch with 36 QSFP ports in a short-depth chassis. This is a managed appliance, not an unmanaged blade or a transceiver. Condition: refurbished, professionally tested by T.E.S IT-SOLUTIONS.
Engineering Context
The MSX6036F-1BRR is built on the SwitchX(-2) ASIC family with 36 physical QSFP/QSFP+ ports operating at FDR (56 Gb/s) per port. Form factor is 1U, short depth, with 1 AC power supply and C2P (Connector-to-Power) reverse airflow. The platform uses an integrated PowerPC PPC460 management CPU and runs MLNX-OS for L2/L3 InfiniBand subnet management, monitoring, and firmware control.
Deployment & Use Cases
Top-of-rack FDR aggregation in short-depth racks, HPC compute pods, lab and university clusters, and storage-fabric uplinks where reverse-airflow is required to align with hot/cold aisle planning.
Technical Specifications
- OEM: NVIDIA Mellanox
- Part Number: MSX6036F-1BRR
- Type: SwitchX FDR InfiniBand 1U Managed Switch
- Ports: 36 × QSFP+
- Per-Port Data Rate: FDR (56 Gb/s)
- Form Factor: 1U (Short depth)
- Power Supplies: 1 × AC
- Airflow: C2P (Connector-to-Power) — reverse airflow
- Management CPU: PowerPC PPC460
- Switching Capacity: Non-blocking 36-port FDR fabric
- Software: MLNX-OS (release 3.6.8008 reported on this unit)
- Compliance: RoHS6
- Condition: Refurbished — Professionally tested by T.E.S IT-SOLUTIONS
Compatibility & Hard Constraints
Compatible with NVIDIA Mellanox ConnectX-3 and ConnectX-3 Pro HCAs at FDR (56 Gb/s). NVIDIA P/N reported on chassis: 930-9OEOS-0000-063. Runs MLNX-OS (release 3.6.8008 reported). Reverse-airflow (C2P) — verify aisle orientation before installation. Single PSU has no power redundancy. Not an EDR/HDR-class switch. Rail kit and cables are not included. RoHS6 compliant.
