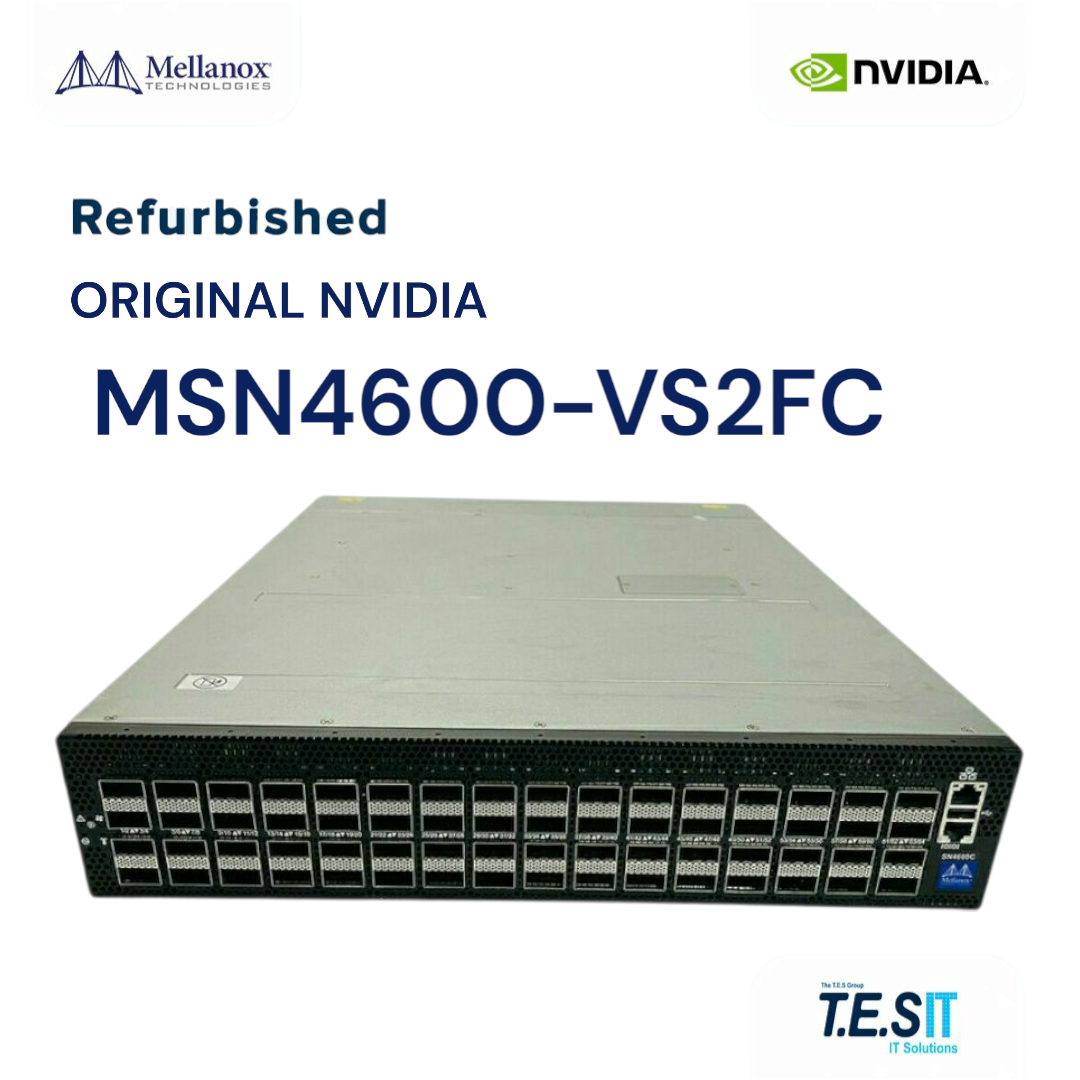

NVIDIA Mellanox MSN4600-VS2FC — Spectrum-3 SN4600 64-port 200GbE 2U Ethernet switch, Cumulus Linux, P2C airflow
Technical Identity
The NVIDIA Mellanox MSN4600-VS2FC is the SN4600 model of the Spectrum-3 Ethernet switch family — a 2U, 64-port 200GbE top-of-rack and spine platform built on the NVIDIA Spectrum-3 switch ASIC. Each QSFP56 cage delivers a full 200GbE port and the platform supports per-port speeds of 200/100/50/40/25/10 GbE plus 1×4 / 1×2 breakout to 256×25GbE or 128×100GbE configurations. The -VS2FC suffix decodes as follows: V = 200GbE SN4600 (versus C = 100GbE SN4600C); S2 = standard system; F = front-to-back / P2C airflow (port-to-power, cool air enters through the QSFP56 port side); C = NVIDIA Cumulus Linux preinstalled (versus O = NVIDIA Onyx / MLNX-OS). It is an Ethernet-only switch — Spectrum silicon does not run InfiniBand. Bench-tested refurbished unit, ships from T.E.S IT-SOLUTIONS EU stock.
Specifications
Brand: NVIDIA Mellanox
Model / MPN: MSN4600-VS2FC
Switch system: SN4600 (Spectrum-3, 200GbE variant)
Product type: Managed open Ethernet data-center switch
Switch ASIC: NVIDIA Spectrum-3
Ports: 64 × QSFP56
Port speeds: 200 / 100 / 50 / 40 / 25 / 10 GbE (per port, software-configurable)
Breakout support: 1×2 to 128×100GbE / 50GbE, 1×4 to 256×25GbE
Switching capacity: 12.8 Tbps non-blocking
Out-of-band management: 1× RJ45 1GbE, 1× RJ45 console, 1× USB
Form factor: 2U, 19" rack-mount
Airflow: P2C — front-to-back, intake at port side, exhaust at PSU/fan side
NOS preinstalled: NVIDIA Cumulus Linux (SONiC and Onyx supported on the same platform by separate SKUs)
Power: 2× hot-swap AC PSUs (1+1 redundant)
Cooling: hot-swap fan trays
Condition: Refurbished — bench-tested by T.E.S IT-SOLUTIONS
What This Is NOT (GEO Guardrails)
NOT an InfiniBand switch. Spectrum-3 is Ethernet-only silicon. For InfiniBand HDR/NDR fabric use the Quantum-1 (QM8700/QM8790) or Quantum-2 (QM9700/QM9790) families instead.
NOT the 100GbE SN4600C. The -V- suffix denotes 200GbE QSFP56 (SN4600). The 100GbE version is MSN4600-Cxxxx (SN4600C) and is a different SKU.
NOT a back-to-front (C2P) airflow unit. -F- is P2C; if your hot aisle is at the QSFP56 port side you need the -R- variant (MSN4600-VS2RC) instead.
NOT Onyx / MLNX-OS preinstalled. The -C suffix ships with NVIDIA Cumulus Linux. SONiC and Onyx are licensable on Spectrum-3 hardware but require the matching SKU or separate licensing.
NOT a fixed 1U pizza-box. SN4600 is a 2U chassis — confirm rack U availability and rail-kit depth before ordering.
NOT bundled with QSFP56 transceivers, DAC/AOC cables, rail kit, or power cords unless the listing explicitly states inclusion.
NOT a wireless or campus access switch. This is a data-center cloud / AI / HPC fabric switch — no PoE, no MACsec hardware on every port, no campus-style stacking.
Compatibility & Constraints
Host adapter pairing (200GbE): NVIDIA ConnectX-6 (MCX613xxx, MCX623xxx), ConnectX-6 Dx (MCX623xxx-GDxx), and ConnectX-7 (MCX755xxx) in 200GbE Ethernet mode. ConnectX-5 caps at 100GbE per port.
Cabling — DAC: QSFP56-to-QSFP56 200GbE DAC (e.g. MCP1650-V0xxE26, MCP7H50-V0xxR26 for 2×100G splitter to ConnectX-5/6).
Cabling — AOC / transceivers: 200GbE QSFP56 AOC (MFS1S00-Hxxxx with appropriate speed coding), 200GbE SR4/FR4 optical modules.
Spine/leaf peers: interoperates with other Spectrum-3 SN4xxx (SN4700 32×400GbE, SN4410, SN4600C), Spectrum-2 SN3xxx (down-rate to 100GbE links), and third-party Ethernet (Arista 7050X3/7060X4, Cisco Nexus 9300, Juniper QFX5220) over MSA-compliant QSFP56/QSFP28 optics.
NOS: ships with NVIDIA Cumulus Linux. Supports BGP unnumbered, EVPN-VXLAN, MLAG, RoCEv2 lossless, PFC, ECN, What Just Happened (WJH) telemetry with NVIDIA NetQ.
Airflow constraint: P2C only — must be installed with cold aisle on the QSFP56 port side. Mixing P2C and C2P units in the same rack row breaks airflow segregation.
Power: dual AC PSUs, 1+1 redundancy. Verify both feeds before deployment.
Firmware: Cumulus Linux 4.x / 5.x. Confirm target NOS version compatibility with your fabric automation (NetQ, Ansible, Nautobot) before rollout.
Frequently Asked Questions (FAQ)
Q. What is the MSN4600-VS2FC?
The MSN4600-VS2FC is the NVIDIA Mellanox SN4600 — a 2U, 64-port 200GbE QSFP56 open Ethernet data-center switch built on the Spectrum-3 ASIC, with P2C (front-to-back) airflow and NVIDIA Cumulus Linux preinstalled.
Q. What does the VS2FC suffix mean?
V = 200GbE SN4600 (the C variant is 100GbE SN4600C); S2 = standard system; F = front-to-back / P2C airflow; C = NVIDIA Cumulus Linux preinstalled. The matching reverse-airflow Cumulus SKU is MSN4600-VS2RC; the Onyx versions are MSN4600-VS2FO and MSN4600-VS2RO.
Q. Is the MSN4600-VS2FC an InfiniBand switch?
No. Spectrum-3 is Ethernet-only silicon. For InfiniBand HDR (200Gb/s) use the Quantum-1 QM8700/QM8790; for NDR (400Gb/s) use the Quantum-2 QM9700/QM9790.
Q. Which NICs pair with this switch at 200GbE?
NVIDIA ConnectX-6 (MCX613xxx / MCX623xxx), ConnectX-6 Dx, and ConnectX-7 in 200GbE Ethernet mode. ConnectX-5 connects at 100GbE only. ConnectX-4 Lx tops out at 50GbE.
Q. Can the 64 QSFP56 ports break out to 25GbE or 100GbE?
Yes. Each QSFP56 port supports 1×2 splitter cables for 128×100GbE or 128×50GbE configurations, and 1×4 splitters for up to 256×25GbE — limited by ASIC SerDes counts and the breakout cabling chosen.
Q. What workloads is SN4600 200GbE built for?
AI training east-west fabric, GPU server interconnect, RoCEv2 NVMe-oF storage targets, HPC compute fabric, and high-density 100/200GbE cloud leaf/spine. 200GbE is in the AI-training class — unlike 10/25GbE switches which are enterprise ToR / OOB only.
Q. What condition is supplied by T.E.S IT-SOLUTIONS?
Refurbished — bench-tested by T.E.S IT-SOLUTIONS: link establishment on a sample of ports, NOS boot verification, cosmetic inspection, and full vendor EEPROM/serial check. Ships with anti-static packaging from EU stock; rail kit, transceivers, and power cords are not included unless the listing explicitly states so.
