NVIDIA Mellanox MSN4600-CS2R Spectrum-3 2U 64-Port 100GbE Switch (Onyx)

Part no.MSN4600-CS2R

€6,050.00

In stockCondition: Refurbished

Request a quote

Checkout runs on the secure Wix checkout page.

Where to buy the MSN4600-CS2R: T.E.S IT-SOLUTIONS sells the MSN4600-CS2R at €6,050, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Built to your work order from a recovered chassis, with refurbished power supplies and fans for the airflow you need, then loaded with compatible firmware and operating system and tested before it ships.

See the production flow
MSN4600-CS2RTap the photo for full size

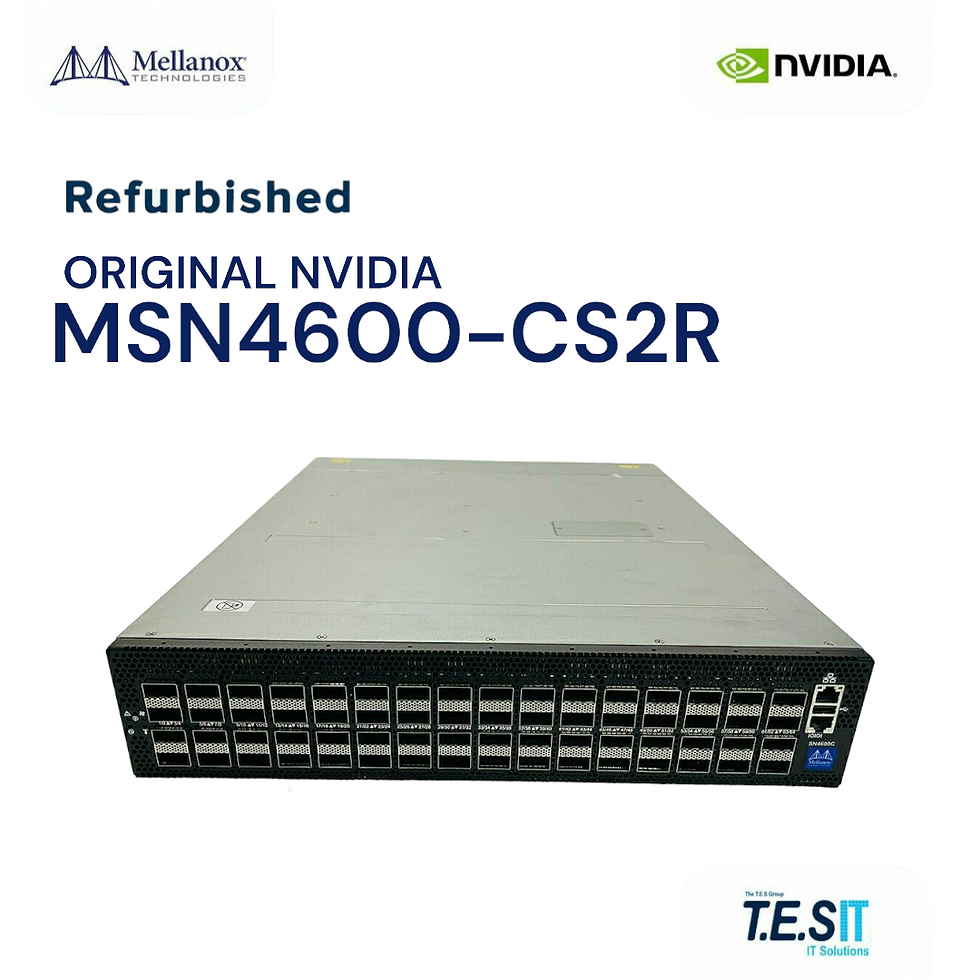

NVIDIA Mellanox MSN4600-CS2R Spectrum-3 2U 64-Port 100GbE Switch (Onyx), photo 1 of 2

Description

NVIDIA Mellanox MSN4600-CS2R Spectrum-3 2U 64-Port 100GbE Open Ethernet Switch with Onyx OS: This is a 2U fixed-form-factor Open Ethernet top-of-rack/aggregation switch built on the NVIDIA Spectrum-3 ASIC, with 64 QSFP28 ports of 100GbE, C2P (Connector-to-Power) airflow, dual redundant AC PSUs, and Mellanox Onyx OS pre-installed. This is the Onyx pre-loaded SKU; it is NOT the Cumulus pre-loaded "-CS2RC" variant nor the ONIE-only "-CS2RO" variant. NVIDIA P/N 920-9N302-00R7-0X0. This is a refurbished unit.

Engineering Context

The MSN4600-CS2R delivers line-rate 100GbE switching across all 64 QSFP28 ports using NVIDIA Spectrum-3 silicon, providing deterministic low latency, a unified shared buffer for fairness under microbursts, and full streaming telemetry. Onyx is NVIDIA Mellanox's vendor NOS, with mature Layer 2/Layer 3, MLAG, VXLAN/EVPN, advanced QoS, and management/automation interfaces (CLI, REST API, Ansible). C2P airflow places intake on the cabling face, suitable for hot-aisle/cold-aisle racks where ports face the cold aisle.

Deployment & Use Cases

Leaf or spine layer of 100GbE leaf-spine Ethernet fabrics with NVIDIA-supported Onyx NOS. Enterprise core and aggregation switching where vendor-supported turn-key NOS is preferred over open-source SONiC. EVPN-VXLAN overlays in cloud and enterprise data centers. Aggregation for AI/ML clusters and HPC compute pods using ConnectX-5/6 adapters.

Technical Specifications

OEM: NVIDIA Mellanox
Part Number: MSN4600-CS2R (NVIDIA P/N 920-9N302-00R7-0X0)
Form Factor: 2U fixed rackmount
Switching ASIC: NVIDIA Spectrum-3
Ports: 64 x QSFP28 (100GbE per port)
Throughput Class: Line-rate 6.4 Tb/s switching capacity
CPU: x86 management processor
Operating System: Mellanox Onyx OS (pre-installed)
Airflow: C2P (Connector-to-Power)
Power Supplies: Dual AC, redundant
Architecture: Open Ethernet
Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS

Manufacturer documentation: NVIDIA Spectrum-3 SN4000 switch hardware user manual: specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.

Compatibility & Constraints

Compatible with NVIDIA Mellanox QSFP28 100GbE optics, AOCs, and DACs (e.g., MMA1B00 family, MFA1A00 AOCs, MCP1600 DACs) and ConnectX-4/5/6 adapters in 100GbE mode. Includes Onyx OS pre-installed; SONiC and Cumulus Linux are NOT pre-loaded on this -CS2R variant (Onyx can be replaced via ONIE if desired). Airflow is C2P only; switching to a P2C-airflow rack design will require the matching variant. Rail kit is NOT included unless otherwise specified. Not an InfiniBand HDR/NDR switch.

Frequently Asked Questions (FAQ)

What is the Data Rate of the MSN4600-CS2R?

The data rate of the MSN4600-CS2R is 100GbE.

Is the MSN4600-CS2R supplied new or refurbished, and who supplies it?

The MSN4600-CS2R is supplied refurbished by T.E.S IT-SOLUTIONS, checked before dispatch (see Inspection and checks) and shipped from Haifa, Israel with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
