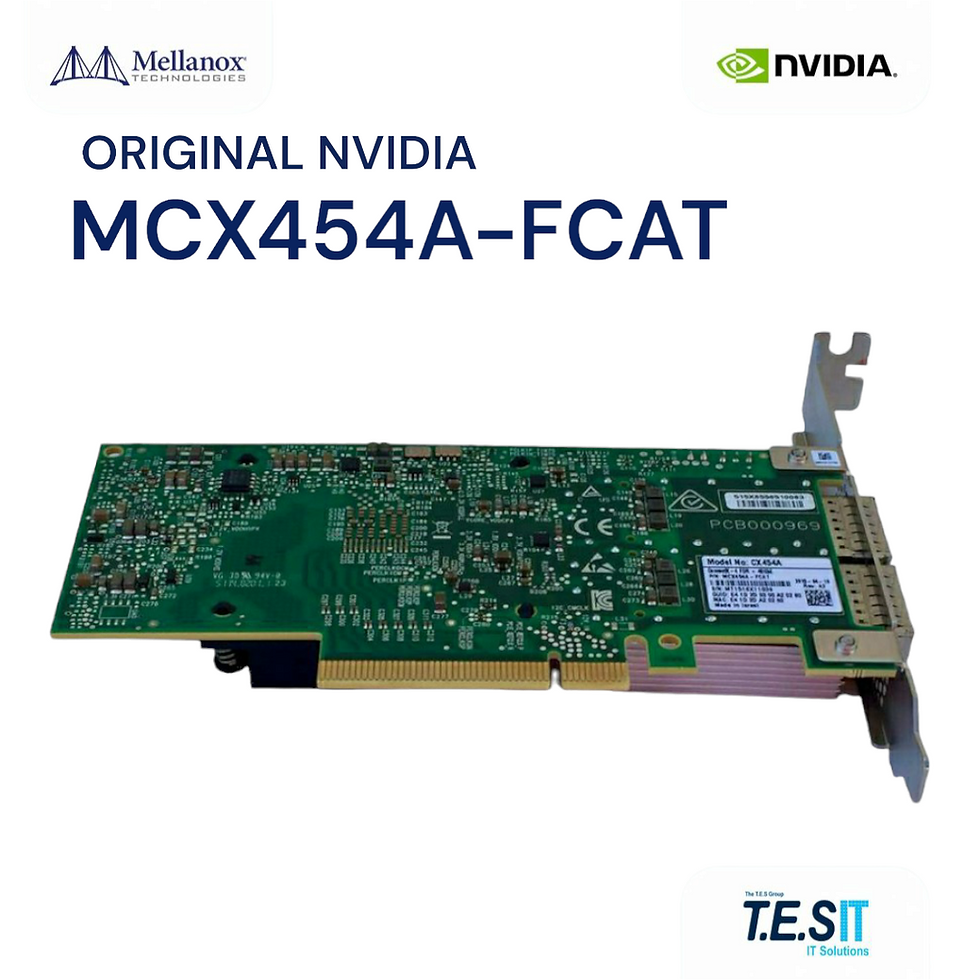

NVIDIA Mellanox MCX454A-FCAT ConnectX-4 VPI Dual-Port QSFP28 FDR / 40-56GbE Adapter: This is a dual-port Virtual Protocol Interconnect (VPI) network adapter built on the NVIDIA ConnectX-4 ASIC. Each QSFP28 port can be independently configured as InfiniBand (up to FDR 56Gb/s) or Ethernet (10/40/56GbE). The MCX454A-FCAT is a PCIe 3.0 x8 card shipped with a tall bracket. This is the FDR-class variant; it does NOT operate at EDR 100Gb/s InfiniBand or 100GbE. This is a new unit.
Engineering Context
The ConnectX-4 VPI controller exposes per-port protocol selection via the mlxconfig utility, allowing one port to run InfiniBand while the other runs Ethernet. The card supports RDMA, Send/Receive verbs, and atomics on both protocols, with full hardware offload of MPI tag matching, GPUDirect RDMA, and SR-IOV (up to 256 VFs per port). On Ethernet, RoCE v1/v2, VXLAN/NVGRE/GENEVE encapsulation offload, and DPDK acceleration are supported. The PCIe 3.0 x8 host interface provides ~63 Gb/s of usable bandwidth, which is the practical aggregate ceiling across both ports.
Deployment & Use Cases
FDR InfiniBand HPC clusters running MPI workloads (OpenMPI, MVAPICH2, Intel MPI). Mixed-protocol storage front-ends where one port serves NVMe-oF over RoCE and the other carries IB SRP. GPU compute nodes using GPUDirect RDMA over FDR for distributed training. Lustre and Spectrum Scale (GPFS) parallel filesystem networks. Dual-homed Ethernet uplinks at 40 or 56GbE.
Technical Specifications
Manufacturer documentation: NVIDIA ConnectX-4 VPI adapter card user manual: specifications. T.E.S IT-SOLUTIONS is independent of NVIDIA.
Compatibility & Hard Constraints
Compatible with NVIDIA Mellanox SwitchIB, Switch-X2, and Spectrum switches in matching protocol modes. Compatible with FDR copper QSFP cables (e.g., MC2207, MC2206) and FDR active optical cables. Drivers via MLNX_OFED for Linux, WinOF-2 for Windows Server, and VMware MLNX-NATIVE-ESX. Does NOT run EDR 100Gb/s InfiniBand or 100GbE — for those rates use MCX455A-ECAT (single-port) or MCX456A-ECAT (dual-port). Does not negotiate above FDR even when paired with EDR-capable switches.
Frequently Asked Questions (FAQ)
What is the Data Rate of the MCX454A-FCAT?
The data rate of the MCX454A-FCAT is 56GbE.
Is the MCX454A-FCAT supplied new or refurbished, and who supplies it?
The MCX454A-FCAT is supplied new by T.E.S IT-SOLUTIONS, checked before dispatch (see Inspection and checks) and shipped from Haifa, Israel with 1-3 business day handling. Full listing and current pricing at tes-itsolutions.com.
