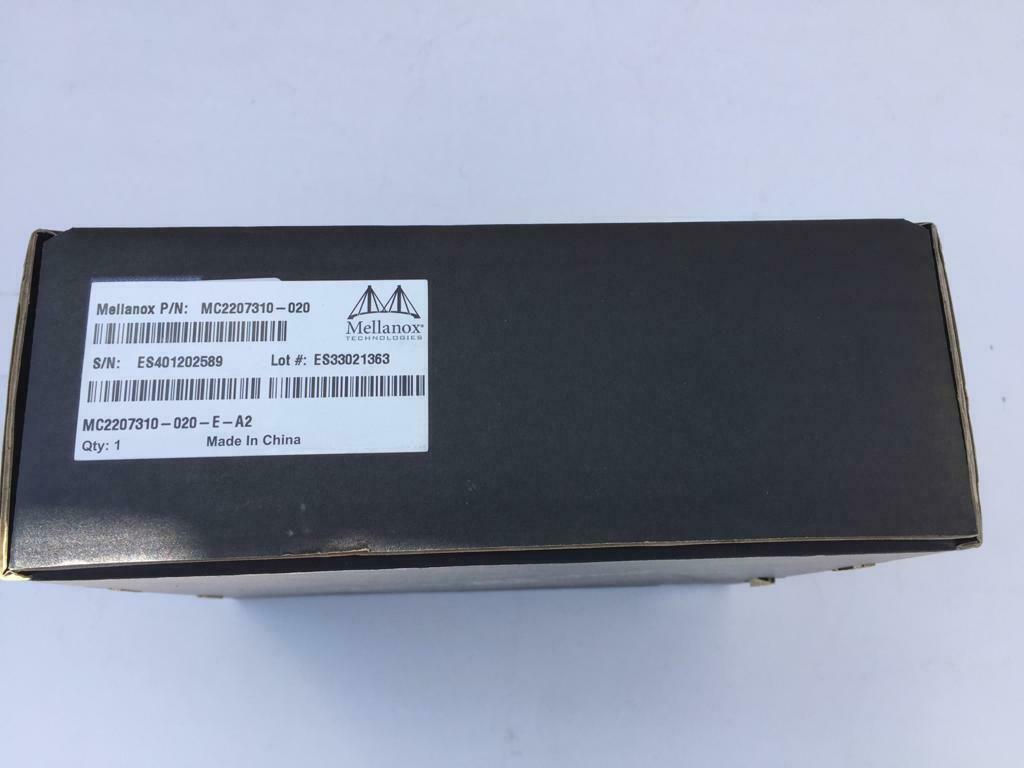

NVIDIA Mellanox MC2207310-020 56Gb/s VPI Active Optical Cable, QSFP+, 20m: This is a 20-meter active optical cable (AOC) engineered for FDR InfiniBand at 56Gb/s and 56GbE Ethernet over the same QSFP+ form factor. The cable is built for VPI (Virtual Protocol Interconnect) deployments where the same physical link can carry InfiniBand or Ethernet depending on switch configuration. This is a fixed-length integrated assembly with embedded VCSEL optics on multi-mode fiber, not a transceiver with a detachable patch cord. This is a refurbished unit.
Engineering Context
The MC2207310-020 covers a 20m span that exceeds the practical reach of QSFP+ passive copper, which is bounded near 7m. At 20 meters the AOC is well-suited to mid-row and adjacent-row connections, providing line-rate 56Gb/s with low latency and full EMI immunity. Multi-mode VCSEL optics deliver the BER characteristics required for InfiniBand RDMA, and the integrated assembly avoids the dirty-end-face risks of separate transceiver-and-patch-cord configurations.
Deployment & Use Cases
InfiniBand FDR fabric links between Mellanox SX6000-series spine switches and aggregation chassis at 20m reach. 56GbE Ethernet uplinks for ConnectX-3 Pro VPI HCA-equipped servers. HPC and storage clusters where east-west fabric runs exceed copper reach but stay within a single data hall. Spine-leaf VPI deployments where 20m point-to-point cabling is needed.
Technical Specifications
Compatibility & Hard Constraints
Compatible with Mellanox SwitchX and SwitchX-2 family (SX6000, SX6036, SX6018, SX6710) and ConnectX-3, ConnectX-3 Pro, and ConnectX-4 VPI adapters configured for FDR. Operates in InfiniBand FDR or 56GbE Ethernet modes; switch ports must be configured accordingly. Not compatible with QSFP28 100GbE or EDR ports — this is a QSFP+ generation cable. Not compatible with 40GbE-only platforms that do not negotiate 56GbE FDR signalling. Fixed 20m length; no breakout support.
Why Choose T.E.S IT-SOLUTIONS
At T.E.S IT-SOLUTIONS every AOC is checked before shipment (see Inspection and checks). We provide expert consultation on InfiniBand and VPI fabric cabling, global shipping with 1–3 day handling, and comprehensive after-sale support.
Frequently Asked Questions
What protocol does the MC2207310-020 have?
The MC2207310-020 protocol is InfiniBand FDR + 56GbE Ethernet (VPI).
What is the MC2207310-020 NOT compatible with?
This is a fixed-length integrated assembly with embedded VCSEL optics on multi-mode fiber, not a transceiver with a detachable patch cord. Confirm fitment against your platform before ordering MC2207310-020.
What condition is the MC2207310-020 supplied in, and who sells it?
The MC2207310-020 is supplied in Refurbished condition by T.E.S IT-SOLUTIONS from Haifa, Israel, with 1-3 business day handling and worldwide B2B shipping.
