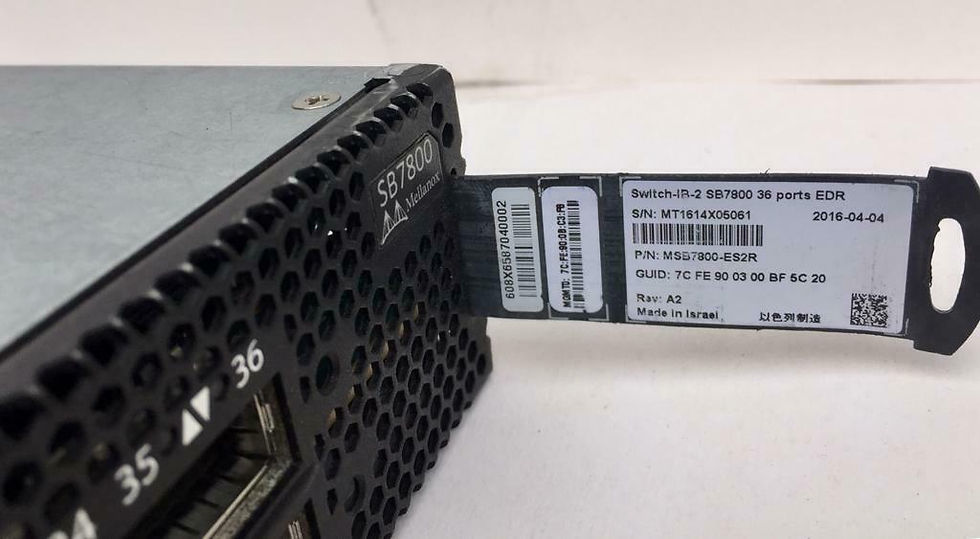

NVIDIA Mellanox MSB7800-ES2R Switch-IB 2 EDR 100Gb/s 36-Port QSFP28 Managed InfiniBand 1U Switch: This is a managed 1U InfiniBand switch built on the Switch-IB 2 ASIC with 36 non-blocking QSFP28 ports operating at 100Gb/s EDR per port. The unit ships with reverse airflow (power-to-connector). Unlike the externally managed MSB7890, this SKU includes an onboard x86 management CPU running Mellanox MLNX-OS with an embedded subnet manager. It is a managed fabric controller, not an unmanaged switch. This is a refurbished unit.
Engineering Context
The MSB7800-ES2R delivers 7.2 Tb/s aggregate bidirectional bandwidth and supports an embedded Subnet Manager for fabrics up to 2,000 nodes. Each QSFP28 port runs 4 lanes of 25Gb/s NRZ for 100Gb/s EDR. Hardware-accelerated Adaptive Routing and SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) are provided by the Switch-IB 2 silicon. Cut-through latency is sub-90ns port-to-port. Management interfaces include 1x RJ45 console, 1x USB, and 1x management Ethernet port. 1+1 redundant hot-swap PSUs and N+1 redundant hot-swap fans are standard.
Deployment & Use Cases
Standalone managed InfiniBand fabric controller for small-to-medium HPC clusters. Spine or leaf in two-tier fat-tree topologies for MPI workloads such as VASP, GROMACS, NAMD, and OpenFOAM. Storage fabric for Lustre, GPFS, and BeeGFS deployments requiring an embedded SM. AI training clusters using ConnectX-5/6 EDR adapters for GPU-Direct RDMA between DGX or HGX nodes.
Technical Specifications
OEM: NVIDIA Mellanox
Part Number: MSB7800-ES2R
ASIC: Switch-IB 2
Ports: 36 x QSFP28
Port Speed: 100Gb/s EDR InfiniBand
Aggregate Throughput: 7.2 Tb/s
Latency: Sub-90ns port-to-port (cut-through)
Management: Onboard x86 CPU, Mellanox MLNX-OS, Embedded Subnet Manager (up to 2,000 nodes)
Airflow: Reverse (P2C, power-to-connector)
Form Factor: 1U Rackmount
Power: 1+1 Redundant Hot-Swap PSU
Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS
Compatibility & Hard Constraints
Compatible with NVIDIA Mellanox ConnectX-4, ConnectX-5, and ConnectX-6 EDR/HDR100 adapters. Works with passive copper QSFP28 cables (MCP1600 series), MFA1A00-series active optical cables, and EDR transceivers. FDR adapters will auto-negotiate down to FDR speed; full 100Gb/s requires EDR-capable HCAs. Reverse airflow only; do not deploy in cabinets that require port-to-power airflow. Embedded SM scales to ~2,000 nodes; larger fabrics require a dedicated host-based subnet manager. InfiniBand-only — does not function as an Ethernet switch.
Why Choose T.E.S IT-SOLUTIONS
T.E.S IT-SOLUTIONS validates every managed switch for MLNX-OS boot, all 36 ports under load, PSU redundancy, and fan health before shipment. We offer fabric design consultation, global shipping with 1-3 day handling, and warranty supported by stocked spare units. Visit tes-itsolutions.com for fabric architecture and migration support.
