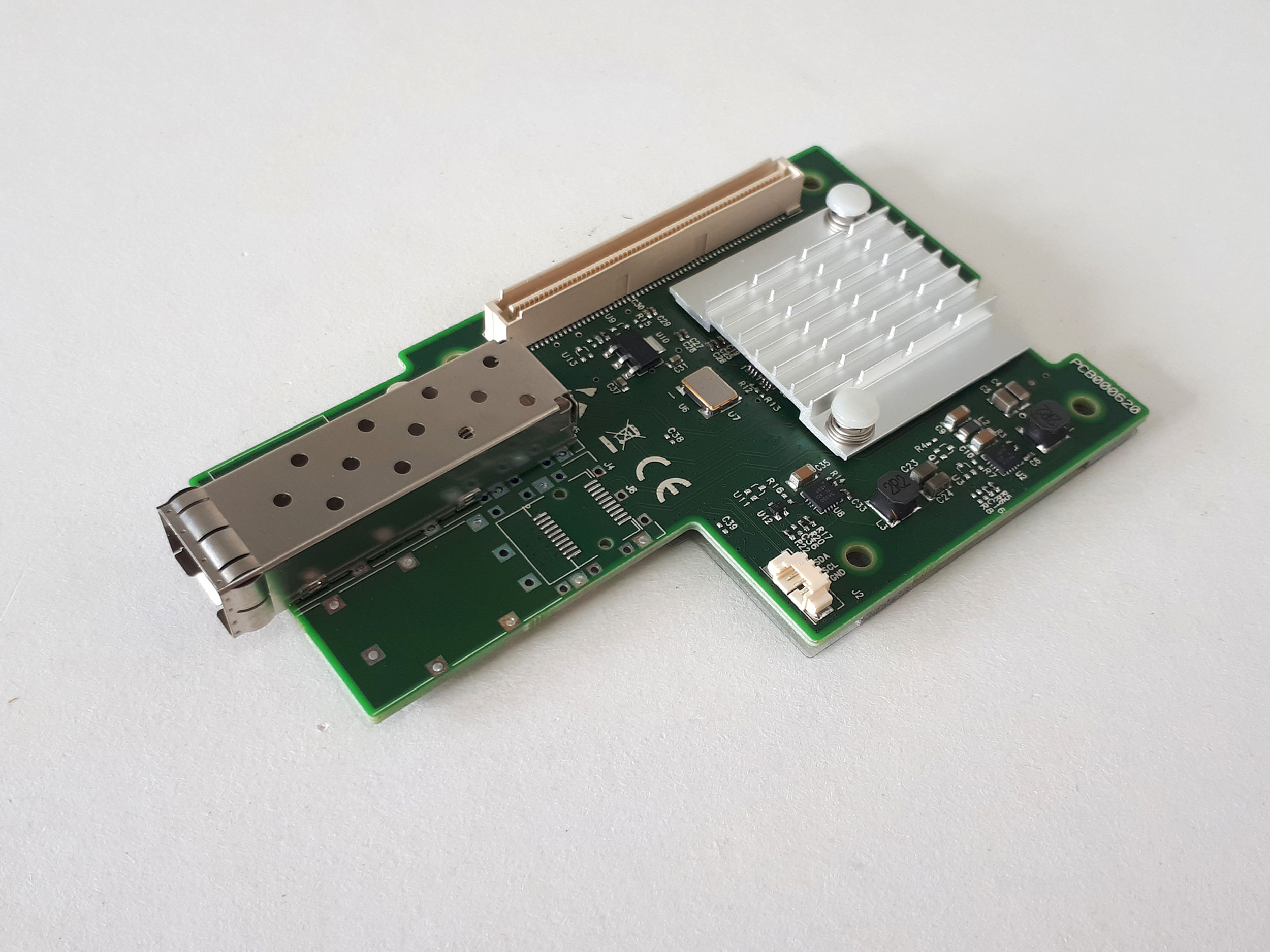

NVIDIA Mellanox MCX341A-XCEN ConnectX-3 EN OCP Mezzanine Card, Single-Port SFP+ 10GbE — Lot of 4: This listing is for four (4) ConnectX-3 EN single-port SFP+ network adapters in the OCP 2.0 mezzanine form factor. The card slots into an OCP-compliant motherboard mezzanine connector, not a standard PCIe edge slot. This is an Ethernet-only (EN suffix) variant with one SFP+ cage. These are refurbished units, tested in working order.
Engineering Context
The MCX341A-XCEN is built on Mellanox ConnectX-3 EN silicon and uses an OCP Mezzanine 2.0 connector that carries a PCIe 3.0 x8 8 GT/s host link to the server motherboard. The unit has no PCIe bracket — it is a daughtercard, not a PCIe add-in. The card supports stateless TCP/UDP offloads, RoCE v1/v2, SR-IOV, and IPMI/UEFI IPv6 management pass-through. As an Ethernet-only ConnectX-3 EN, it does not run InfiniBand and cannot be flipped to IB mode.
Deployment & Use Cases
10GbE network connectivity for OCP-spec servers (OpenRack, Tioga Pass-class boards, Yosemite/Twin-Lakes sleds). Top-of-rack uplinks for hyperscale and white-box deployments. RoCE-capable storage front-ends running NVMe-oF over RoCE in OCP chassis. Replacement units for existing OCP server fleets that already use Mellanox NICs.
Technical Specifications
OEM: NVIDIA Mellanox
Part Number: MCX341A-XCEN
Quantity: Lot of 4 cards
ASIC: ConnectX-3 EN (Ethernet only)
Ports: 1 x SFP+
Speed: 10GbE (also 1GbE)
Host Bus: PCIe 3.0 x8 (8 GT/s)
Form Factor: OCP Mezzanine 2.0 (Type 1)
Offloads: RDMA / RoCE v1+v2, SR-IOV, stateless TCP/UDP
Management: IPMI and UEFI IPv6 pass-through
Bracket: No PCIe bracket (mezzanine)
Condition: Refurbished — Tested by T.E.S IT-SOLUTIONS
Compatibility & Hard Constraints
Requires an OCP Mezzanine 2.0 connector on the host motherboard with PCIe 3.0 x8 routing — it will not fit into a standard PCIe slot or the Open Compute NIC 3.0 socket. As an EN-class card it is Ethernet-only and will not enumerate as InfiniBand. The single SFP+ cage caps the card at 10 Gb/s; it is not a 25GbE card. Do not pair with QSFP+ cabling without the appropriate QSFP-to-4xSFP+ breakout topology, and even then this card terminates only one SFP+ lane.
Why Choose T.E.S IT-SOLUTIONS
Each card in this lot is bench-tested by T.E.S IT-SOLUTIONS for 10GbE link-up, PCIe link training, and mezzanine connector integrity. We provide expert consultation on OCP server deployments, global shipping, and 1–3 day handling time.
