LENOVO Mellanox 03LE615 400G OSFP to 2x200G QSFP56 HDR AOC Splitter Cable 20m

Part no.03LE615

€900.00

In stockCondition: Refurbished

Request a quote

Checkout runs on the secure Wix checkout page.

Where to buy the 03LE615: T.E.S IT-SOLUTIONS sells the 03LE615 at €900, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Recovered from end-of-life equipment, inspected and tested before it ships.

See the production flow
03LE615Tap the photo for full size

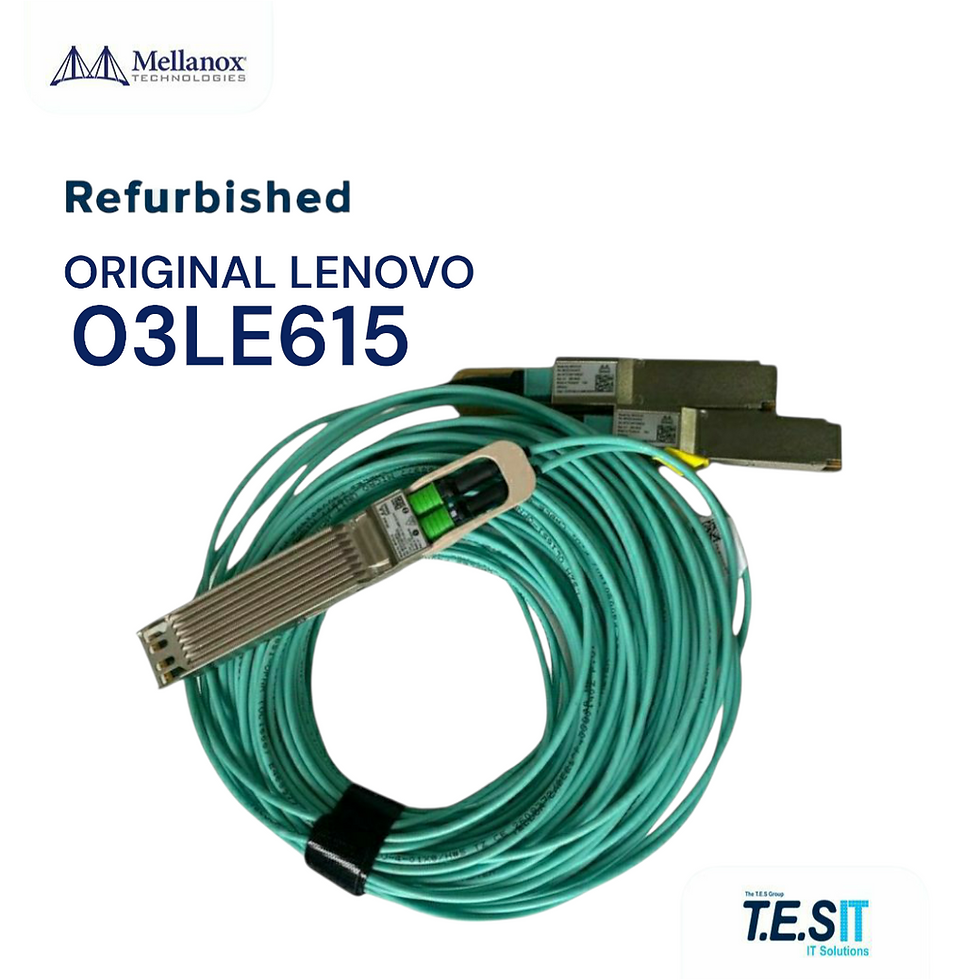

LENOVO Mellanox 03LE615 400G OSFP to 2x200G QSFP56 HDR AOC Splitter Cable 20m, photo 1 of 3

Description

LENOVO Mellanox® 03LE615 — 400G OSFP to 2×200G QSFP56 HDR AOC Splitter, 20m

Technical Identity

The LENOVO Mellanox® 03LE615 is a Lenovo Data Center-branded NVIDIA Mellanox® LinkX® Active Optical Cable in twin-port HDR splitter configuration. The switch end terminates in a single twin-port OSFP cage carrying two independent 200 Gb/s HDR InfiniBand channels (400 Gb/s aggregate); the breakout ends terminate in two QSFP56 connectors at 200 Gb/s HDR each. Lenovo P/N 03LE615 is the Lenovo rebrand of NVIDIA part MFA7U10-H020. Total length is 20 metres of OM3/OM4-class multi-mode optical fibre with integrated 850 nm VCSEL optics and active retiming on each end — delivering the reach and signal-integrity envelope of a true AOC rather than a passive DAC.

Specifications

Brand: LENOVO (NVIDIA Mellanox® LinkX® silicon)
Model / MPN: 03LE615
NVIDIA equivalent P/N: MFA7U10-H020
Product type: Active Optical Cable (AOC) — hybrid splitter / breakout / fan-out
Family: NVIDIA Mellanox LinkX twin-port OSFP to 2×QSFP56 HDR
Connectors: 1 × OSFP (twin-port, NDR-class cage) on the switch end; 2 × QSFP56 on the adapter ends
Configuration: Y-shaped 1-to-2 hybrid splitter — one switch port feeds two adapter endpoints
Aggregate speed: 400 Gb/s (2 × 200 Gb/s HDR per QSFP56 leg)
Per-leg speed: 200 Gb/s HDR InfiniBand
Length: 20 metres
Medium: Multi-mode optical fibre (OM3/OM4-class), 850 nm VCSEL engine, active retiming on each end, DDM read-out
Protocol: HDR InfiniBand (twin-port OSFP HDR fan-out)
Condition: Refurbished Grade A — checked by T.E.S IT-SOLUTIONS (see Inspection and checks)

What This Is NOT

  • NOT a passive DAC. This is an active optical cable; powered VCSEL optics are integrated into both housings and draw current from the host port.

  • NOT a 1-to-1 cable. This is a Y-splitter — both QSFP56 legs must terminate into adapters or switch ports; you cannot use only one leg.

  • NOT a single-connector cable. This is a hybrid splitter, switch end OSFP, adapter ends QSFP56 — connectors are physically different on each side and not interchangeable.

  • NOT a 400 Gb/s per-port cable. Aggregate is 400 Gb/s but each QSFP56 leg is 200 Gb/s HDR — there is no single 400G endpoint anywhere on the cable.

  • NOT an NDR cable. The MFA7U10-H series is HDR (200 Gb/s per lane group). For NDR 400G-per-port deployments use a different LinkX SKU (MFA7U40 / MFP7E10 N-coded variants).

  • NOT a transceiver. Fixed-length cable assembly; the optics are integrated and cannot be unplugged or replaced.

  • NOT compatible with NDR 400G adapters on the QSFP56 leg. ConnectX-7 NDR adapters expect OSFP or QSFP112 cages — they will not link with a QSFP56 leg.

  • NOT for short intra-rack server-to-ToR runs. At 20 metres this is an inter-rack / row-aggregation cable, not an in-rack jumper.

  • NOT a generic Mellanox cable. Lenovo EEPROM ≠ native NVIDIA EEPROM; third-party switches may require an unsigned-cable override.

Compatibility & Constraints

  • Switch side (OSFP twin-port, 400 Gb/s): NVIDIA Quantum-2 InfiniBand switches MQM9700 / MQM9790 (64-port NDR with twin-port OSFP cages) and Lenovo-rebranded Quantum-2 SKUs. The switch port must be configured for HDR sub-rate operation (2 × 200G per twin-port).

  • Adapter side (QSFP56, 200 Gb/s HDR): NVIDIA ConnectX-6 (MCX653105A-HDAT, MCX653106A-HDAT) and ConnectX-6 Dx HDR adapters with QSFP56 cages. ConnectX-7 NDR adapters with QSFP112 cages are NOT directly compatible on the leg side.

  • OEM firmware acceptance: Lenovo-branded LinkX cables present Lenovo EEPROM identification. Lenovo ThinkSystem servers and NVIDIA Quantum-2 firmware accept the cable natively; some third-party switch firmware may require an unsigned-cable override or vendor-class allowlist.

  • Reach budget: 20 m, OM3/OM4-class multi-mode link budget at 850 nm. Fixed cable assembly, not field-trimmable.

  • Power: Drawn from host OSFP and QSFP56 cages — no external power required. Verify your switch supports the OSFP optical power class.

  • Protocol scope: The MFA7U10 series is a dedicated HDR InfiniBand fan-out — primary deployment is Quantum-2-to-ConnectX-6 IB fabrics, not Spectrum Ethernet.

Frequently Asked Questions (FAQ)

What is the 03LE615?

The 03LE615 is the Lenovo Data Center part number for an NVIDIA Mellanox LinkX twin-port OSFP-to-2xQSFP56 HDR active optical cable, 20 metres, equivalent to NVIDIA P/N MFA7U10-H020. It splits one 400 Gb/s twin-port OSFP at the switch end into two independent 200 Gb/s HDR QSFP56 legs at the adapter end.

Is this a hybrid splitter with different connectors on each end?

03LE615: Yes. This is a hybrid splitter, switch end OSFP, adapter ends QSFP56. The switch end is a single OSFP (twin-port, NDR-class cage carrying 2x200G channels) and the adapter ends are two QSFP56 connectors at 200 Gb/s each. You cannot plug a QSFP56 leg into an OSFP cage or vice versa.

Does the 03LE615 carry NDR 400G end-to-end?

03LE615: No. The aggregate switch-side bandwidth is 400 Gb/s, but each QSFP56 leg is 200 Gb/s HDR. The cable is a 400G OSFP twin-port HDR fan-out feeding two HDR endpoints; there is no NDR 400G single-link mode and no NDR support on this SKU.

Which switches and adapters is this cable designed for?

03LE615: Switch end: NVIDIA Quantum-2 MQM9700 / MQM9790 (64-port NDR with twin-port OSFP cages) and Lenovo-rebranded Quantum-2 SKUs. Adapter end: NVIDIA ConnectX-6 and ConnectX-6 Dx HDR adapters with QSFP56 cages (e.g. MCX653105A-HDAT, MCX653106A-HDAT). The cable is purpose-built for Quantum-2 HDR fan-out topologies.

Is 20 metres suitable for inside a single rack?

03LE615: No. At 20 metres this is an inter-rack / row-aggregation cable - typical placement is spine-to-leaf within a compact pod, or EoR/MoR switch to multiple racks. For intra-rack ToR-to-server runs use a 1-3 metre DAC or AOC instead.

Is the 03LE615 an Ethernet cable?

03LE615: No. The MFA7U10 series is a dedicated HDR InfiniBand fan-out cable family for Quantum-2 fabrics. For 200/400GbE Spectrum Ethernet deployments, use the corresponding LinkX Ethernet SKU instead.

What condition is supplied by T.E.S IT-SOLUTIONS?

The 03LE615 ships Refurbished Grade A - checked (see Inspection and checks). Ships from Haifa, Israel in anti-static packaging.
