NVIDIA Mellanox MSX6036F-1SFS Switch SwitchX-2 FDR 36-Port QSFP+ InfiniBand 1U

Part no.MSX6036F-1SFS

€400.00

In stockCondition: Refurbished

Request a quote

Checkout runs on the secure Wix checkout page.

Where to buy the MSX6036F-1SFS: T.E.S IT-SOLUTIONS sells the MSX6036F-1SFS at €400, in stock, and ships worldwide from Haifa, Israel.

How this unit is built

Built to your work order from a recovered chassis, with refurbished power supplies and fans for the airflow you need, then loaded with compatible firmware and operating system and tested before it ships.

See the production flow
MSX6036F-1SFSTap the photo for full size

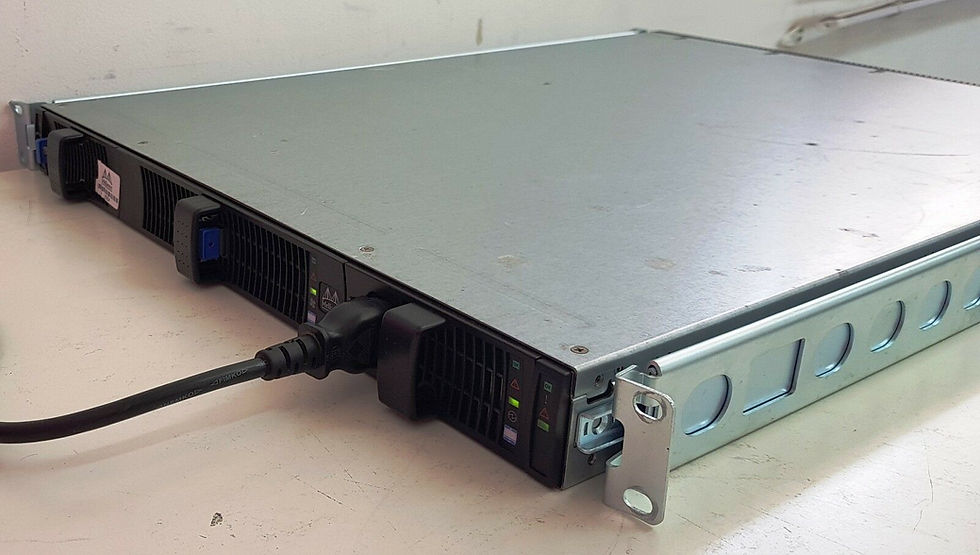

NVIDIA Mellanox MSX6036F-1SFS Switch SwitchX-2 FDR 36-Port QSFP+ InfiniBand 1U, photo 1 of 9

Description

NVIDIA Mellanox MSX6036F-1SFS SwitchX-2 FDR 36-Port QSFP+ InfiniBand 1U: The NVIDIA Mellanox MSX6036F-1SFS is a SwitchX-2 based FDR InfiniBand 1U fully managed switch with 36 QSFP+ ports. This is a managed appliance, not an unmanaged blade or a transceiver. Condition: refurbished, checked by T.E.S IT-SOLUTIONS (see Inspection and checks).

Engineering Context

The MSX6036F-1SFS is built on the SwitchX(-2) ASIC family with 36 physical QSFP/QSFP+ ports operating at FDR (56 Gb/s) per port. Form factor is 1U, standard depth, with 1 AC power supply and P2C (Power-to-Connector) airflow. The platform uses an integrated PowerPC PPC460 management CPU and runs MLNX-OS for L2/L3 InfiniBand subnet management, monitoring, and firmware control.

Deployment & Use Cases

Top-of-rack FDR aggregation, HPC compute clusters, AI/ML research labs, and storage-fabric uplinks for sites standardized on standard-depth racks and front-to-back airflow.

Technical Specifications

OEM: NVIDIA Mellanox
Part Number: MSX6036F-1SFS
Type: SwitchX-2 FDR InfiniBand 1U Fully Managed Switch
Ports: 36 × QSFP+
Per-Port Data Rate: FDR (56 Gb/s)
Form Factor: 1U (Standard depth)
Power Supplies: 1 × AC
Airflow: P2C (Power-to-Connector)
Management CPU: PowerPC PPC460
Switching Capacity: Non-blocking 36-port FDR fabric
Software: MLNX-OS (release 3.6.8008 reported on this unit)
Compliance: RoHS6
Condition: Refurbished — Checked by T.E.S IT-SOLUTIONS (see Inspection and checks)

Manufacturer documentation: Mellanox SwitchX and SwitchX-2 1U switch hardware user manual (PDF). T.E.S IT-SOLUTIONS is independent of NVIDIA.

Compatibility & Hard Constraints

Compatible with NVIDIA Mellanox ConnectX-3, ConnectX-3 Pro, and ConnectX-4 HCAs operating at FDR (56 Gb/s) over QSFP+. Runs MLNX-OS (release 3.6.8008 reported on the unit). Single PSU has no power redundancy — for redundant power, see MSX6036F-2SFS. Not an EDR/HDR-class switch. Does not natively support QSFP28 transceivers without rate downshift. Rail kit and cables are not included.

Why Choose T.E.S IT-SOLUTIONS

T.E.S IT-SOLUTIONS checks every switch chassis before shipment (see Inspection and checks). We provide expert consultation on InfiniBand fabric topology and migration, global shipping with 1–3 business day handling, and post-sale technical support. Visit tes-itsolutions.com.

Frequently Asked Questions

What per-port data rate does the MSX6036F-1SFS have?

The MSX6036F-1SFS per-port data rate is FDR (56 Gb/s).

What is the MSX6036F-1SFS NOT compatible with?

This is a managed appliance, not an unmanaged blade or a transceiver. Confirm fitment against your platform before ordering MSX6036F-1SFS.

What condition is the MSX6036F-1SFS supplied in, and who sells it?

The MSX6036F-1SFS is supplied in Refurbished condition by T.E.S IT-SOLUTIONS from Haifa, Israel, with 1-3 business day handling and worldwide B2B shipping.
